Product Details

  • Pyle - PLA4200 , On the Road , Amplifiers , 4 Channel Amplifiers , 4 Channel 2000 Watt Bridgeable Mosfet Amplifier
  • Pyle - PLA4200 , On the Road , Amplifiers , 4 Channel Amplifiers , 4 Channel 2000 Watt Bridgeable Mosfet Amplifier
  • Pyle - PLA4200 , On the Road , Amplifiers , 4 Channel Amplifiers , 4 Channel 2000 Watt Bridgeable Mosfet Amplifier
  • Pyle - PLA4200 , On the Road , Amplifiers , 4 Channel Amplifiers , 4 Channel 2000 Watt Bridgeable Mosfet Amplifier
  • Pyle - PLA4200 , On the Road , Amplifiers , 4 Channel Amplifiers , 4 Channel 2000 Watt Bridgeable Mosfet Amplifier

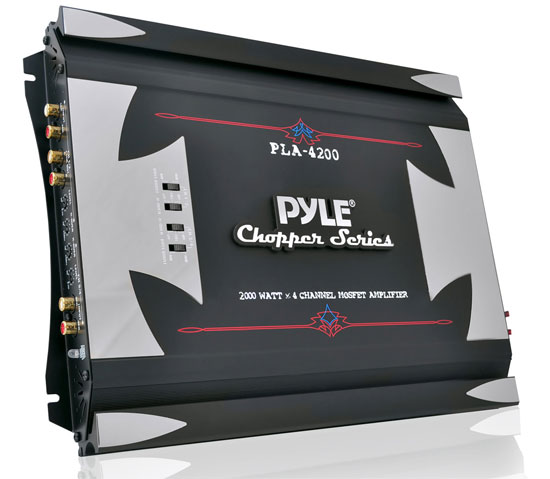

4 Channel 2000 Watt Bridgeable Mosfet Amplifier
Model PLA4200
Brand Pyle
Category 4 Channel Amplifiers
MSRP $295.99
Warranty 1 year

Details


  • 500 Watts x 4 Output
  • 1000 watts x 2 Bridged Output(500W x 2 + 1000W x 1)
  • Dual Variable Hi/Lo Electronic Crossover Network
  • Dual MOSFET PWM Power Supplies
  • Dual Variable Input Level ( Gain ) Control
  • Dual Switchable Bass Boost
  • Power Protection LED Indicators
  • Low Level Inputs
  • RCA Inputs Outputs
  • Slim Size Amplifier Design For Easy Installation
  • Thermal / Overload / Short Circuit Protection
  • Anti-Thump Turn-on
  • Soft Turn-On Circuit
  • Remote Turn On/Off
  • S/N Ratio: 95db
  • T.H.D 0.04%
  • Freq. Response: 15Hz - 30KHz
  • 2 x 20 Amp Maxi Type Fuse
  • Dimensions: 10.63'' H x 1.42'' W x 14.25'' L
  • Sold as : Unit
  • Weight :9.87 lbs.
  • Videos

    No Videos Available

    Reviews


      Average Rating :
      Good product but it died after 9 mo...More
      Unit worked for 3 days, than stoppe...More



    Sign in to Add Review


    Buy Online

    Similar Products

    PLA4200
    Advanced Protection Circuitry view larger
    PLA4200
    Pyle Chopper Series Amplifiers view larger
    PLA4200
    System Wiring Diagram view larger
    PLA4200

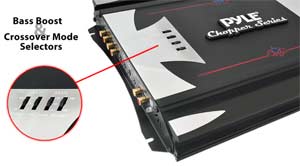

    Bass Boost and Crossover Mode Selectors view larger
    PLA4200
    Gold-Plated RCA Speaker Terminals view larger
    PLA4200

    High Performance MOSFET Amplifiers

    The Pyle Chopper Series Amplifiers will provide your audio setup with powerful new sound. Add performance and quality enhancement to your music when you upgrade your audio system with these rugged and high-efficiency amps. Enjoy tomorrow’s advanced sound technology that outperforms all other amps in its class.

    This lineup of Chopper Amps raises the bar when it comes to true sound quality. Get that sound you’ve been looking for with crisp music reproduction for any mobile audio environment.

    Sound Specialization

    These high-efficiency MOSFET amplifiers host impressive power output wattage and are where form and function meet. Enjoy sound and performance enhancing features like impressive total watt power output, Variable Bass Boost, Gain Control, Electronic Crossover Network, gold-plated RCA ports, Ohm production stability along with plenty more features that make the Pyle Chopper Series Amps an excellent choice for true car audio enthusiasts.

    Intelligent Design

    Safety features include power and protection LED indicator; soft turn-on/off, thermal, overload and speaker-short protection. LED Indicator shows when the amplifier is powered up normally and when your system is experiencing a protection fault.

    Pump it Up

    Take advantage of the Bass Boost Level Control and turn it up. Make adjustments to the Bass settings until you achieve that extra amount of kick you’ve been waiting for.

    Strong Sound – Powerful Style

    The jet-black design with polished chrome accents give the Chopper Series Amps a clean and tough appearance. Fortified aluminum heat-sinks with stream-lined and next-generation audio technology will definitely add some attitude to your audio.

    Total Audio Control

    Once you’re connected, customize and adjust your listening experience to your liking with the amplifier’s control center. You can personalize and fine-tune settings like:

    • Level (Gain) Control – These are basically volume controls. This will allow you to adjust the incoming signal to the amplifier so that it works well with your headunit or to match the level of other amplifiers in your system.
    • Phase - Allows you to change the relative time that the waveform meets your ear. With standard subwoofer installations where the subwoofer is behind you, the phase should generally be at O. When subwoofers or woofers are in the kick panels or door panels, an adjustment is useful in delaying the timing of the wave meeting your ear.
    • High-Pass Filter – The High Pass crossover is used for sending midrange and high frequency information to a particular speaker. Activate the High Pass crossover if you intend to drive satellite or coaxial speakers in the system along with subwoofers driven by the amplifier’s channels. Even if your system does not include subwoofers, it may be helpful to activate the High Pass with smaller speakers to protect them from low frequency information to achieve better sound.
    • Low-Pass Filter - Filters high frequencies out of the music and improves efficiency and sound quality by allowing only the low frequencies to pass to the subwoofer. Sends only low frequency information to particular speakers. Low Pass crossover activation is usually desired if you intend to power subwoofers.
    • Bass EQ - Variable from a range of decibel adjustments, this feature regulates the impact of your bass kick. You’ll have manual control over balancing and correcting the frequency range of a given sound.
    • Crossover Switch – Basically acts as a filter and limits selected frequencies going to a subwoofer, which gradually reduce frequency signal strength. Routes output of the Low Pass or the output of the High Pass filters, or ‘Full’ to the power amplifier.

    *Please refer to table below for amplifier specific information and adjustment options.

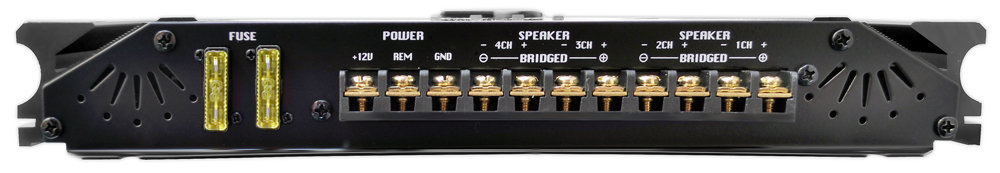

    Speaker Output Connections

    Connect right and left speaker wire to corresponding speaker output terminals. Be sure to correctly connect the selected speaker wires to their respected speaker terminal, this includes both positive and negative wiring. Improper installation/wiring will result in the speaker cones to move out of phase which can cause bass cancellation.

    Technical Specs

    • Gold-Plated RCA Ports
    • Advanced Protection Circuitry
    • 500 Watts x 4 Output
    • 1000 watts x 2 Bridged Output(500W x 2 + 1000W x 1)
    • Dual Variable Hi/Lo Electronic Crossover Network
    • Dual MOSFET PWM Power Supplies
    • Dual Variable Input Level ( Gain ) Control
    • Dual Switchable Bass Boost
    • Power Protection LED Indicators
    • Low Level Inputs
    • RCA Inputs Outputs
    • Slim Size Amplifier Design For Easy Installation
    • Thermal / Overload / Short Circuit Protection
    • Anti-Thump Turn-on
    • Soft Turn-On Circuit
    • Remote Turn On/Off
    • S/N Ratio: 95db
    • T.H.D 0.04%
    • Freq. Response: 15Hz - 30KHz
    • 2 x 20 Amp Maxi Type Fuse
    • Dimensions: 10.63'' H x 1.42'' W x 14.25'' L

    More Amplifier Options from the Chopper Series:

      PLA1200

    PLA2200

    PLA2210

    PLA2220

    PLA2230

    PLA2260

    PLA4120

    PLA4200
    Currently Viewing
    Watt Power Output 1900 1400 1800 2400 3000 4000 1000 2000
    Channels Monoblock 2 2 2 2 2 4 4
    Bass Boost Variable Switchable Switchable Variable Variable Variable Dual Switchable Dual Switchable
    Fuse Type 2 x 20A 2 x 10A 2 x 15A 2 x 20A 2 x 25A 2 x 35A 2 x 10A 2 x 20A



    Product Description
    The Pyle Chopper series has been specially designed from the bottom up to provide quality sound in a sturdy form factor. You'll be blasting your tunes and rocking the block with these amps. The PLA4200 is a four-channel, 2000-watt bridgeable power amplifier. It's equipped with everything you've come to expect from quality car amplifiers - dual switchable bass boost, dual variable gain control, and a dual configurable electronic crossover network. The RCA ports are gold-plated for eliminating signal loss. A subsonic filter allows low-end interference to be cut, so your speakers will always be delivered the highest quality audio. The dual MOSFET pulse width modulation power supplies allow for a clean, distortion-free signal to your speakers. To keep both your car and the amplifier safe, this model is equipped with thermal, overload, and short circuit protection. And this amp's slim size makes installation a breeze - you'll have no trouble finding a spot for this powerful little device. So chop up your tunes and play them for the world with the Pyle Chopper.
