4 Channel 800 Watt Waterproof Micro Marine Amplifier
Model PLMRMP3B
Brand Pyle
Category Vehicle Amplifiers
MSRP $119.99
Warranty 1 Year

Details


  • 4 x 100 Watts RMS at 4 Ohms
  • 4 x 200 Watts Max at 4 Ohms
  • 4 x 300 Watts RMS at 2 Ohms
  • Fuse: 10A
  • RCA Line Input
  • T.H.D: <0.05%
  • Soft Turn On/Off
  • S/N Ratio: >95dB
  • Anti-Thump Turn-On
  • 2 Ohms Stereo Stable
  • Power Protection Circuitry
  • Channel Separation: >65dB
  • Volume Gain Remote Control
  • Electronic Crossover Network
  • Remote Control for Volume Gain
  • Adjustable High Low Level Inputs
  • Frequency Response: 10Hz - 40kHz
  • Dimensions: 6.10'' L x 3.35'' W x 1.38'' H
  • Sold as : Unit
  • Weight :2.4 lbs.
  • Videos

    No Videos Available

    Manuals and Downloads

    PLMRMP3B - Manuals

    Reviews


      Average Rating :
      Awesome product used in Radio Coole...More
      so far so good..... packed right .....More
      great product for your money...More



    Sign in to Add Review


    Buy Online

    Similar Products

    4-Channel Waterproof Marine Amplifier
    4-Channel Waterproof Marine Amplifier
    Click here for a larger image
    Waterproof Poly Bag Keeps Your Devices Dry
    Waterproof Poly Bag Keeps Your Devices Dry
    Click here for a larger image
    Hydra Series Amp
    Hydra Series Amplifier
    Click here for a larger image
    Accessory Cables Included
    Accessory Cables Included
    Click here for a larger image
    Wiring and Controls Diagram
    Wiring and Controls Diagram
    Click here for a larger image

    4-Channel Waterproof Marine Amplifier

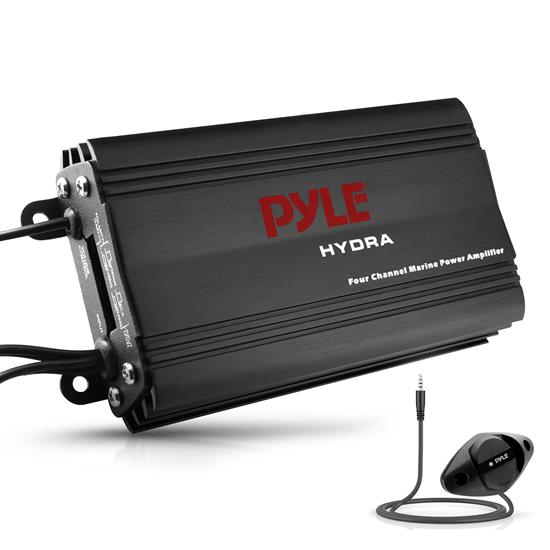

    The Pyle PLMRMP3B is a compact and waterproof 4-Channel Marine Amplifier designed for mounting possibilities in numerous applications and makes it simple to expand the audio system capabilities for your vehicle - perfect for your boat, ATV or RV.

    The Hydra Series Amplifier System comes with everything you need to give your sound system a serious boost while providing protection against the elements. Add up to 400 Watt Max power (200 watt power on each of the 2 channels). Create a fitting and truly custom installation with this sound system.

    Plug it in

    This amplifier kit comes with a waterproof poly bag with 3.5mm jack so you can enjoy playing your favorite audio files from your iPod/MP3 player. The system includes RCA line inputs and the kit comes with a 3.5mm-to-RCA adaptor so you can connect your device. You can also connect standard high and low level inputs from a marine head-unit or car stereo/radio.

    Fine-Tune Your Audio

    The switches and gain settings are located behind a watertight plug, which also lights up when the amplifier is on. Customize your audio settings and make it sound just the way you want. Make adjustments to:

    • Input Level: Set the input sensitivity of the amp. If you are connecting to a LINE level source (typically an RCA type connection) then the switch should be in the LINE (out) position. When connecting to speaker outputs, headphone, or high level car radio sources then set the switch to the SPEAKER position.
    • Polarity: This switch allows the user to optimize bass performance in the case that there are more than 1 set of loudspeakers producing bass in the system. Play some music with strong bass content and listen with the switch alternately in the NORMAL and REVERSE position until it can be determined which settings results in more pleasing bass response.
    • Gain Control: Adjusts the overall level of the amplifier. When using the amp without volume control, the level should be set to achieve a balance with other loudspeakers in the system. As a rule, you should keep the gain settings as low as possible while still ensuring that the system will reach its full output power.
    • Volume Control: Plug for the waterproof remote volume control. When installed, this control will power off the amp when turned all the way down
    • RCA Stereo Input: Connect external audio devices like an iPod or just about any other MP3 player.

    Custom Installation

    Built-in mounting brackets and included hardware allow for easy and convenient installation. Attach the amplifier to a compartment or panel with just a few screws.

    Built-in Safety

    This amp is equipped with power protection circuitry and soft turn on/off preventing damage to your speaker equipment.

    Accessories Included

    Kit comes with 4-channel waterproof marine amp, iPod/MP3 waterproof 3.5mm stereo to RCA adaptor, remote control for volume gain and waterproof poly bag.

    Add Some Power

    With any quality marine audio system you will need an amp to power your high powered marine audio system. With the Hydra Series Amplifiers you will have all the power you need to run even the highest rating marine system. All Pyle Hydra amplifiers are specially engineered for marine applications.

    Additional Features

    • 4 x 100 Watts RMS at 4 Ohms
    • 4 x 200 Watts Max at 4 Ohms
    • 4 x 300 Watts RMS at 2 Ohms
    • Fuse: 10A
    • RCA Line Input
    • T.H.D: <0.05%
    • Soft Turn On/Off
    • S/N Ratio: >95dB
    • Anti-Thump Turn-On
    • 2 Ohms Stereo Stable
    • Power Protection Circuitry
    • Channel Separation: >65dB
    • Volume Gain Remote Control
    • Electronic Crossover Network
    • Remote Control for Volume Gain
    • Adjustable High Low Level Inputs
    • Frequency Response: 10Hz - 40kHz
    • Dimensions: 6.10'' L x 3.35'' W x 1.38'' H
    Product Description
    Get high quality audio amplification on your boat or other marine vehicle with the Pyle PLMRMP1B. It includes a marine-ready, four-channel power amplifier pushing up to 800 watts, a waterproof poly bag, and a waterproof stereo 3.5mm-to-RCA adaptor for plugging in virtually any audio source, including your iPod or other MP3 player. Also included is a special waterproof bag to keep your equipment safe while listening to your favorite music. The amp is equipped with high and low level inputs, an electronic crossover network, plus power protection circuitry and anti-thump turn-on to keep your equipment secure. The included wired volume control easily mounts to your vehicle's dashboard and provides an easy way to control your music while at the helm of your vessel. Color: black.
