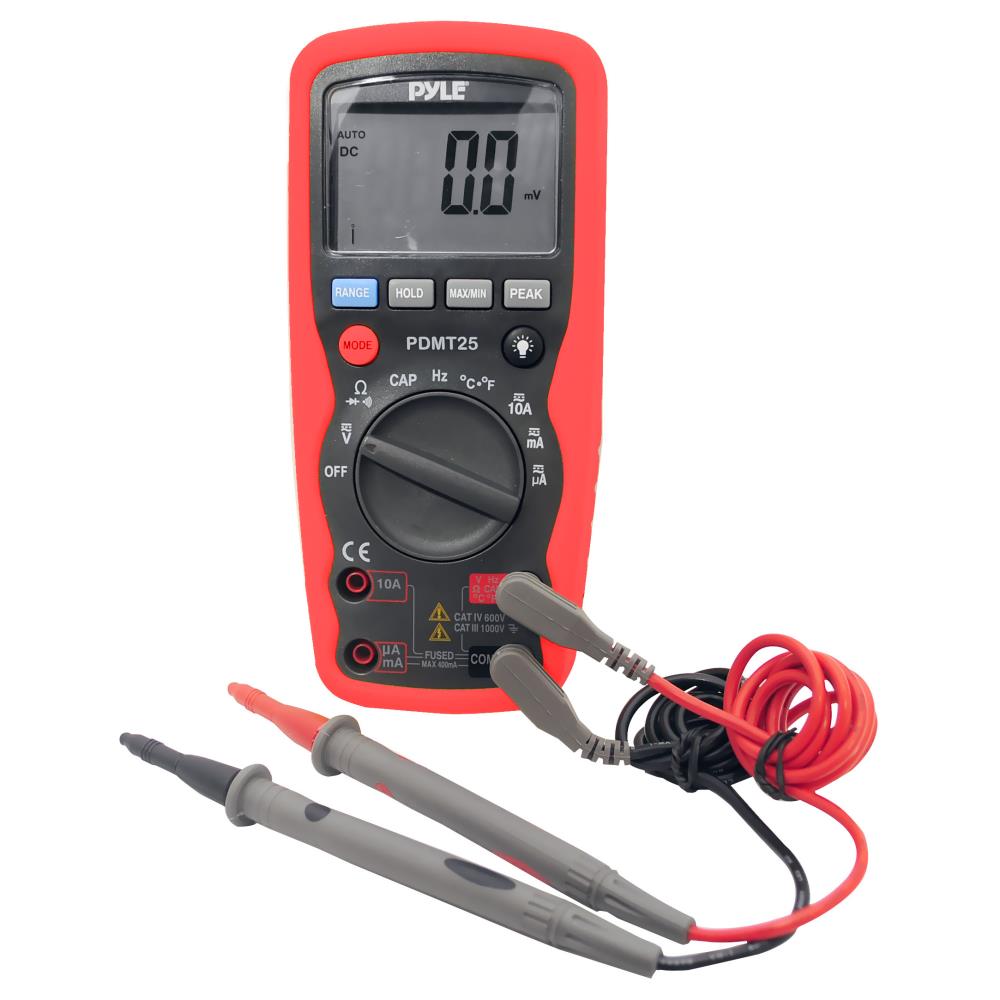

Digital Multimeter with Voltage, Current, Resistance, Duty Cycle, Temperature, Frequency, and Capacitance
|
|
|
|
Model
|
PDMT25
|
|
Brand
|
PyleHome
|
|
Category
|
Disc
|
|
MSRP
|
$179.99
|
|
Warranty
|
1 Year
|
|
|
|
Details
|
|
4000 Display Count
Peak Capture Mode
Data Hold
Max/Min Recording Mode
Voltage DC: Max Range 1000 V, Accuracy +/- 0.5%
Voltage AC: Max Range 1000 V, Accuracy +/- 0.8%
Current DC: Max Range 10 A, Accuracy +/- 1.2%
Current AC: Max Range 10 A, Accuracy +/- 1.8%
Resitance: Max Range 40 MΩ, Accuracy +/- 0.8%
Duty Cycle: Max Range 99.9%, Accuracy +/- 1.2%
Temperature: Max Range 760 ºC / 1400 ºF, Accuracy +/- 3.0%
Frequency: Max Range 10 MHz, Accuracy: +/- 1.5%
Capacitance: Max Range 40 mF, Accuracy +/- 1.5%
Diode Check
Continuity Test
Accessories Included: Test Leads, 9V Battery, K-Type Temperature Probe
Dimensions: 7.16'' H x 3.23'' W x 2.17'' DSold as: UnitWeight: 1.58 lbs.
|
|
|
|
|
|
|
|
|
|
|
Similar Products
|
|
|
|
|
|
|
|
|
|
|
|
This digital multimeter from Pyle works well in both automotive and home electronics applications. The PDMT25 will help you diagnose and solve problems with your electrical equipment. It measures AC/DC voltage, current, resistance, duty cycle, temperature, frequency, and capacitance. You can also check diodes and continuity. Easily measure these data with the included test leads and K-type temperature probe. It also has a peak capture mode to display only the highest measured data point, as well as a data hold mode. Includes 9V battery. 4000 display count.
|
