2 in 1 LAN Tester and Multimeter with Voltage, Current, Resistance, Continuity, and Diode Tester
|
|
|
|
|
|
|
Details
|
|
Tests Pin Configuration for 10 Base-T, 10 Base-2, RJ45/RJ11, 356A, TIA-569A/568B and Token Ring Cable
Remotely Test Cables Up to 330 Yards Away
Test Ground Wire
Measure DC/AC Voltage, DC/AC Current, Resistance, Continuity, and Diode
DC Voltage: Max Range 600 V, Accuracy +/- 0.5%
AC Voltage: Max Range 600 V, Accuracy +/- 1.2%
DC Current: Max Range 200 mA, Accuracy +/- 1.2%
AC Current: Max Range 200 mA, Accuracy +/- 2.0%
Resistance: Max Range 20 MΩ, Accuracy +/- 0.8%
Continuity Test: Beeps If Less Than 100 Ω
Accessories Included: Test Leads, LANtest Remote Terminator, 9V Battery, Carrying Case
Dimensions: 6.38'' H x 2.93'' W x 1.73'' D
Weight: 10.86 oz.Sold as: UnitWeight: 1.37 lbs.
|
Manuals and Downloads
No Manual And Download Available
Reviews
|
|
No User Review Available
Sign in
to Add Review
|
|
|
|
|
|
|
|
|
|
|
Similar Products
|
|
|
|
|
|
|
|
|
|
|
|

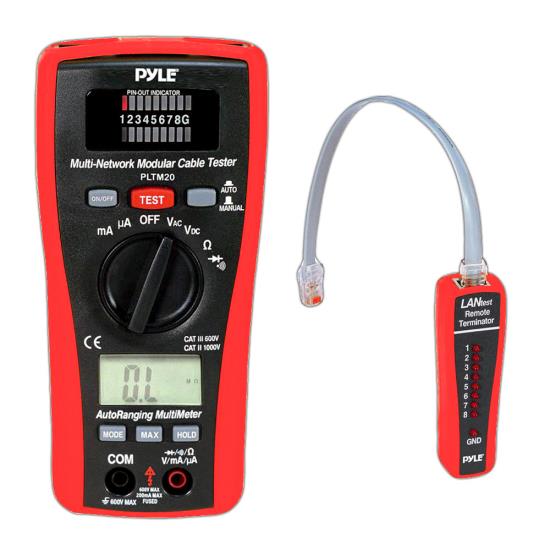

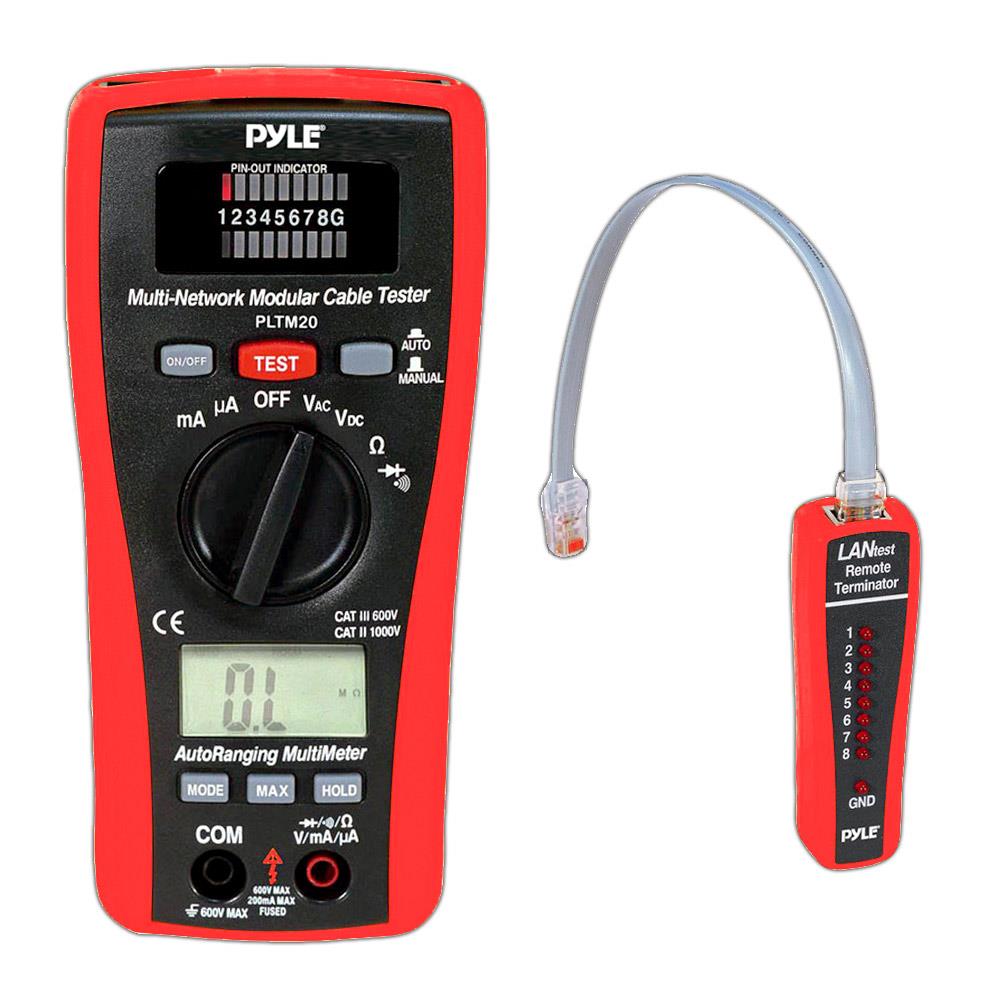

The PLTM20 is a 2-in-1 LAN tester and multimeter. It tests pin configurations for 10 base-T, 10 base-2, RJ45/RJ11, 356A, TIA-596A/568B, and token ring cable. You can test cables remotely — up to 330 yards away. As a multimeter, the PLTM20 can measure DC/AC voltage, DC/AC current, and resistance. It can also check continuity and diodes. Includes test leads, a LANtest remote terminator, a 9V battery, and a carrying case.
|
