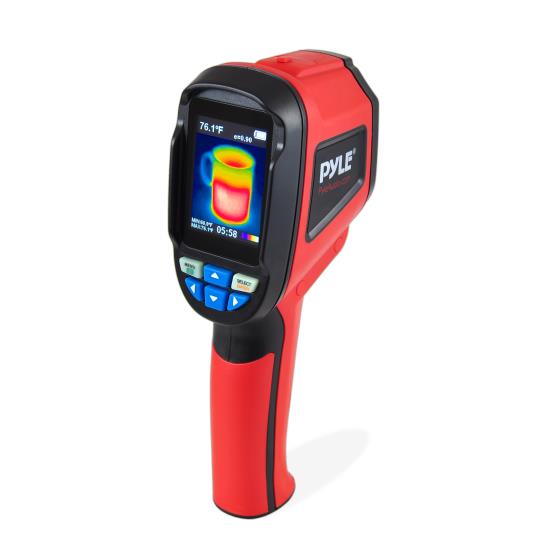

Infrared IR Thermal Imaging Camera / Digital Heat Sensor
Model PTIMGCM83
Brand Pyle
Category Temperature - Humidity - Moisture
MSRP $1,006.99
Warranty 1 Year

Details

  Features:
  • Digital Fixed Focal Thermal Sensing
  • Instant, Accurate & Reliable
  • Displays Hottest + Coldest Temperature Areas (On-Screen)
  • Easy File Saving & File Transfer
  • Micro SD Memory Card Slot (4GB Card Included)
  • 2.4'' Digital Display Screen
  • HD High-Resolution Color Output
  • Simple Trigger Activation: Touch Button Operation
  • Ability to Preview Image & Delete Image on the LCD Display
  • Selectable Color Palette Reading Output
  • Background Temperature Setting
  • Battery Operated: Requires (4) x 'AA' Batteries, Included
  • Digital Power/Battery Level Indication

    What's in the Box:
  • Thermal Imaging Camera
  • 4 GB Micro SD Memory Card
  • Travel Case
  • (4) x 'AA' Batteries

    Technical Specs:
  • Temperature Unit Selectable: °C / °F
  • Minimum Temp. Reading: -4°F (-20°C)
  • Maximum Temp. Reading: 572°F (300°C)
  • Recommended Measurement Distance: 7'' - 20''
  • Temperature Measurement Range: -4°F ~572°F, (-20°C ~ +300°C)
  • Image Resolution: 60 x 60 (3600 Pixels)
  • (4) Selectable Color Palette Screen Preview Options:
  • (High Contrast, Iron Red, Rainbow, Gray-Scale)
  • Background Temperature Adjustable: 32°F to 96.8°F, (0°C to 36°C)
  • Image Capture Frequency: 6Hz
  • Emissivity Adjustable 0.1 - 1.0
  • Measurement Accuracy: +/-2%
  • Thermal Sensitivity: 0.15°C
  • Digital 0.3 MP Sensor
  • Field Angle: 20 x 20
  • Focal Distance (Short): 0.5m
  • Date/Time Stamp: ON/OFF
  • Maximum Micro SD Card Support Size: 16GB
  • Dimensions: 9.06'' x 3.15'' x 2.05''
  • Sold as: Unit
  • Weight: 2.29 lbs.
  • Videos

    No Videos Available

    Manuals and Downloads

    No Manual And Download Available

    Reviews

      No User Review Available


    Sign in to Add Review



    Similar Products
    • side

    Product Description
    The Pyle Handheld Thermal Imaging Camera provides instant, accurate and reliable heat signatures. The digital infrared sensor captures temperature ranges from -4°F to 572°F, (-20°C ~ +300°C). The 2.4'' digital display screen provides HD color output readings with (4) selectable color palette readouts; high contrast, iron red, rainbow and gray scale signatures. The convenient handheld design features simple 'point & shoot' activation with trigger button -- which makes the system perfect for on-site applications. Use the thermal imaging camera for maintenance & repairs, insulation barrier inspection, energy efficiency monitoring and device troubleshooting. Additional system features include Micro SD memory card slot for easy file saving and transfer to computer, digital LCD display for heat signature previews with the ability to delete unwanted images using the integrated button controls. Enjoy versatile digital heat sensing ability with the Pyle PTIMGCM83 Infrared IR Thermal Imaging Camera.
