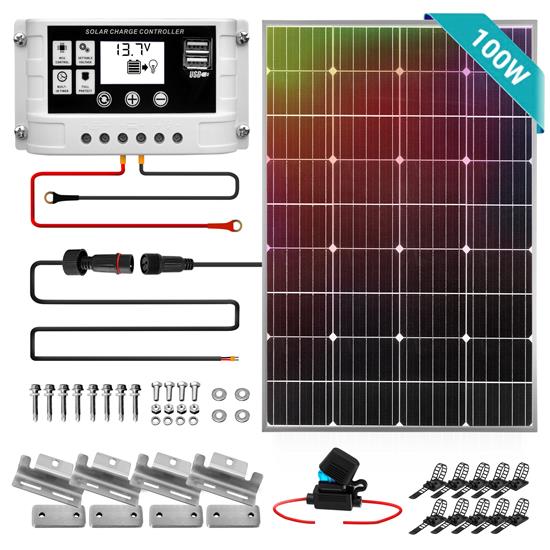

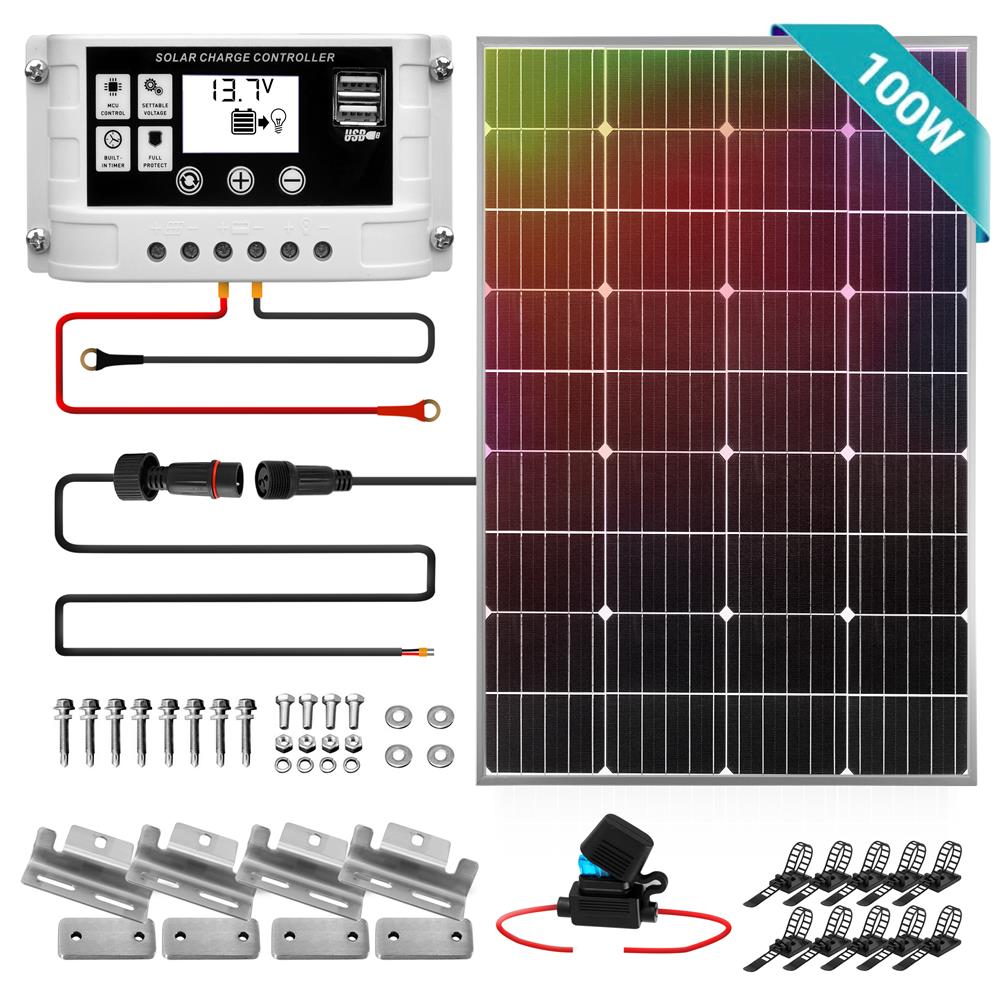

1 Pc. Portable Mono Solar Panel Starter Kit - 100W with 3 ft. 11AWG Cable Set and 30A PWM Controller with LCD Screen
Model SLSPSKT100
Brand SereneLife
Category Power Generation Equipment
MSRP $415.99
Warranty 1 Year

Details

  Features:
  • Includes 30A PWM Controller with LCD Screen
  • Portable and Easy Set-Up
  • Sleek Design for Aesthetic Quality
  • Grade A Mono Solar Cells
  • Higher Module Conversion Efficiency
  • Optimally Generate about 33.4Ah in 12V Battery or 400WH per Day
  • Anodized Aluminum Frame to Protect Solar Cells & Convenient for Installation
  • Foam Box for Safe Transport and Easy Storage
  • Dust Tight and Waterproof with IP67 Rating
  • Set Up in Just 5 Minutes for Solar Starters
  • Used for Marine, Dry Camp, RVs, and Other Off-grid Applications

    What's in the Box:
  • (1) 100W Mono Solar Panel
  • (1) Set of Mounting Brackets
  • (10) Wire Fixers
  • 3 ft. 11 AWG Cable Set (Connected already with Solar Panel Junction Box)
  • 20 ft. 11 AWG Sheathed Cable Set with Aviation Connector
  • 8 ft. 11 AWG PV Cable Set with Ring Terminal
  • 15A Fuse
  • 30A PWM Controller

    Technical Specs:
  • Power Supply: 100W
  • Fuse: 15A
  • Short-Circuit Current (Isc):5.85A
  • Open-Circuit Voltage (Voc): 23.1V
  • Maximum Power Voltage (Vmp): 18.8V
  • Maximum System Voltage: 1000V
  • Tolerance of PMax: ±3%
  • Series Fuse Rating: 15A
  • Maximum Power Current (Imp): 5.32A
  • Battery Type: 12V Lead-acid and Lithium-ion Batteries (Battery Not Included in the System)
  • Cell Type: High-Efficiency Monocrystalline
  • Operating Temperature: Controller and Inverter: -20℃-50℃
  • Solar Panel: -40℃-85℃
  • Controller Voltage: 12V/24V
  • Max. Input: < 50V
  • USB Output: 5V/2A
  • Standby Current: < 12mA
  • Type of Connector: Aviation Connector
  • Wire/Cable Length: 35.4 -inch
  • Product Dimension: 35.4'' x 26.4'' x 1.4'' -inches
  • Sold as: 1
  • Weight: 24.36 lbs.
