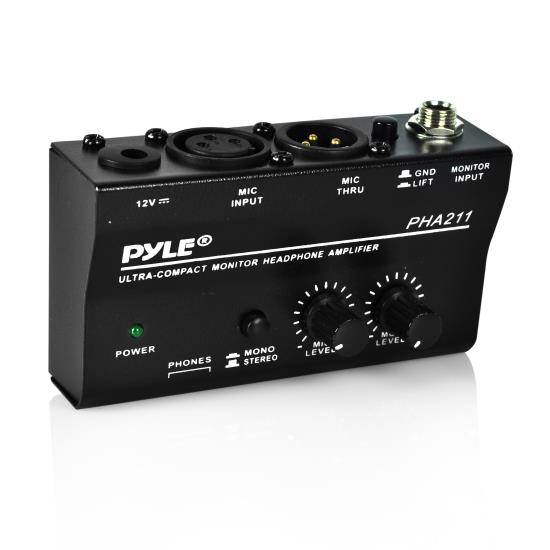

Compact Monitor Headphone Amplifier, +48V Phantom Power Pass
|
|
|
|
|
|
|
Details
|
|
Features:
Compact Monitor Stereo Headphone Amplifier
Allows Convenient Audio Level & Monitor Mixing
Distortion & Noise-Free Performance
Dual Headphone Inputs: 1/4'' and 1/8'' (3.5mm)
+48V Phantom Power Pass
XLR (3-Pin) Microphone & Mic Thru Inputs
1/4'' TRS Monitor Input
GND/LIFT Push Type Switch
Rotary Volume Level Controls
Power LED Indicator Light
Audio Mode Selectable: Stereo / Mono
Includes 12V DC Power Adapter
Perfect for Studio and On-Stage Applications
Technical Specs:
Input Impedance: 100k-Ohm, Unbalanced
Output Impedance: 80-Ohm, Each
Max Output Level: 40mw, 100Ohm
Input Level: +15dBu (Max.)
Gain Adjustment: Up to 20dB/Channel
S/N Ratio: >90dB
T.H.D.: <0.03%
Power: 12V DC, 150mA
Dimensions: 4.1'' x 1.2'' x 2.2''Sold as: 1Weight: 0.92 lbs.
|
