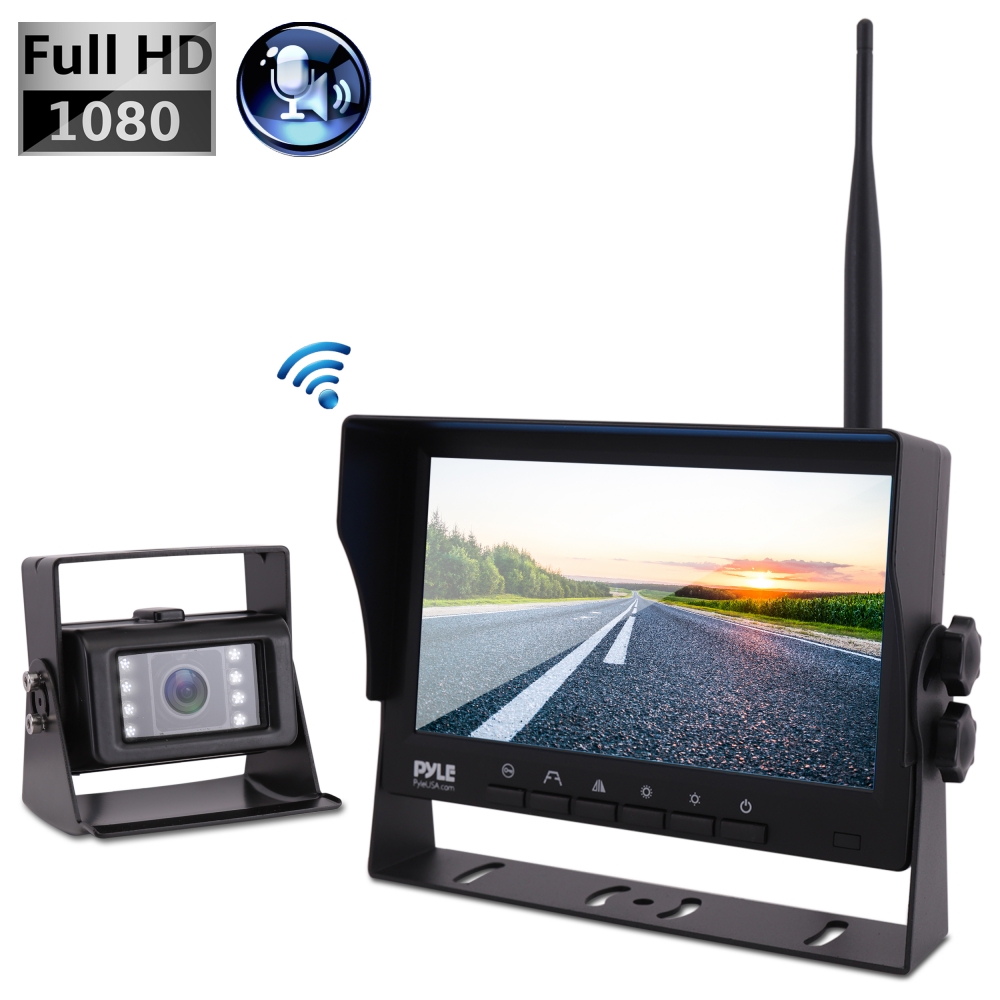

Digital Wireless Monitor and Camera System - Single Channel 7'' LCD Display, 1080P HD Quality
Model CA-PLCMTR83WIR
Brand Pyle
Category Rearview Backup Cameras - Dash Cams
MSRP $329.99
Warranty 1 Year

Details

  Features:
  • All View Angle IPS TFT LCD Panel
  • 2.4G Digital Wireless Transmit Solution
  • Wireless Transmit Range at About 11,811’’ -inches
  • Camera with Built-in Microphone
  • Transmits Audio Sound to the Monitor
  • Monitor Have Sound Mute Operation Button
  • Easy Operation & Installation on Vehicles
  • Includes Sound Control Button
  • Built-in Speaker and Microphone
  • Ability to Connect Only One Wireless Camera
  • Designed for Car/Truck use 12/24 Volt Systems

    What’s In The Box:
  • Monitor with Built-in Receiver
  • Camera with Built-in Transmitter
  • Power & Wiring Harness
  • Camera DC Power Cable
  • (2) 2.4G Wireless Antennas

    Monitor Specs:
  • 1080p HD Quality
  • Panel: 7'' -inch Digital Panel Screen (IPS panel, Full Angle of View)
  • Aspect Ratio: 16:9 Widescreen
  • System: PAL/NTSC Auto-Switching
  • Anti Glare Sun Shade
  • Universal Stand Mount
  • Resolution: 800 x 480 Pixels
  • Power: DC12V & DC24V(Max to DC36V)
  • Power Consumption: Less than 5W
  • Max.Current: Less 450mAh
  • Storage temperature: -30℃〜80℃
  • Working temperature: -20℃ to 70℃
  • Brightness: 500 cd/m2
  • OSD Menu with Front Panel Button Controls
  • Brightness, Color, Contrast Adjustable
  • Dimensions: (L x W x H): 7.1'' x 2.9'' x 4.7'' -inches

    Monitor Wireless Receiver Specs:
  • Operating frequency range Cover: 2.4GHz~2.4835GHz
  • Output Power: 17±1dBm @TYp 20dBm@max (if necessary)
  • Modulation Type: FSK/GFSK
  • RX Sensitivity: -89dBm (Typ.)@4MHz BER<1E-3
  • RF Bit Rate: 4MHz BER<1E-3
  • Spread Spectrum: FHSS
  • Distance: Over 300M

    Camera Specs:
  • Image Sensor: 1/3 sensor
  • Effective Pixels: 720 x 576 pixels
  • System: AHD
  • Night Vision Visible Distance: About 3 meters
  • IR Night Vision: with IR
  • Power: DC 12V & 24V
  • Power Consumption: Less than 5W
  • Max.Current: Less 450mAh
  • Storage temperature: -30℃〜80℃
  • Working temperature: -20℃ to 70℃
  • Sound: With Built-in Microphone
  • Camera Dimensions (W x H x D): 3.18" x 2.95" x 2.17" -inches

    Camera Wireless Transmit Specs:
  • Operating frequency range Cover: 2.4GHz~2.4835GHz
  • Output Power: 17±1dBm @TYp 20dBm@max (if necessary)
  • Modulation Type: FSK/GFSK
  • RX Sensitivity: -89dBm (Typ.)@4MHz BER<1E-3
  • RF Bit Rate: 4MHz BER<1E-3
  • Spread Spectrum: FHSS
  • Distance: Over 300M
  • Sold as: Unit
  • Weight: 2.55 lbs.
