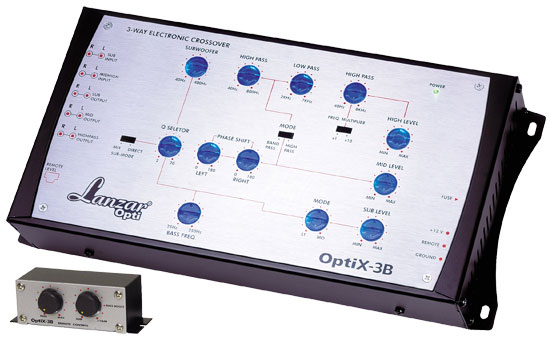

    Pyle - OPTIX3B , On the Road , Equalizers - Crossovers , Optidrive 3 Way Electronic Crossover Network w/Remote Bass Boost Level Control
Optidrive 3 Way Electronic Crossover Network w/Remote Bass Boost Level Control
Model OPTIX3B
Brand Lanzar
Category Equalizers - Crossovers
MSRP $171.99
Warranty 1 year

Details


  • Blue Light Illuminated Control Panel
  • Removable Covers For Power And In/Output Ports.
  • Rotary Control Knobs
  • 12db Per Octave Crossover Slopes
  • PWM Power Supply Subwoofer Mode Switch
  • Remote Bass Boost (0-+18db) And Level Controls
  • Variable Subwoofer Frequency Control 40-400 Hz
  • Variable High-Pass Frequency Control (Mid-Range) 40-800Hz
  • Variable Low-Pass Frequency Control (Mid-Range) 2k-7 Khz
  • Variable High-Pass Frequency Control (40-8 Khz)
  • X1, X10 High Pass Frequency Multiplier-Switch
  • Parametric ''Q'' Control (2-20)
  • Left And Right Mid Range Phase Shift Control (0-180)
  • Variable Bass Boost Frequency Control 25-250 Hz
  • Band Pass/ High Pass Control Switch
  • Subwoofer Stereo/Mono Mode Control
  • Mid/High Sub RCA Inputs
  • High, Mid Sub RCA Outputs
  • Variable Output Level Controls, 7 Volts
  • Dimensions : 6''W X 1.75''H X 12.69''L
  • Sold as: Unit
  • Weight: 4.73 lbs.
