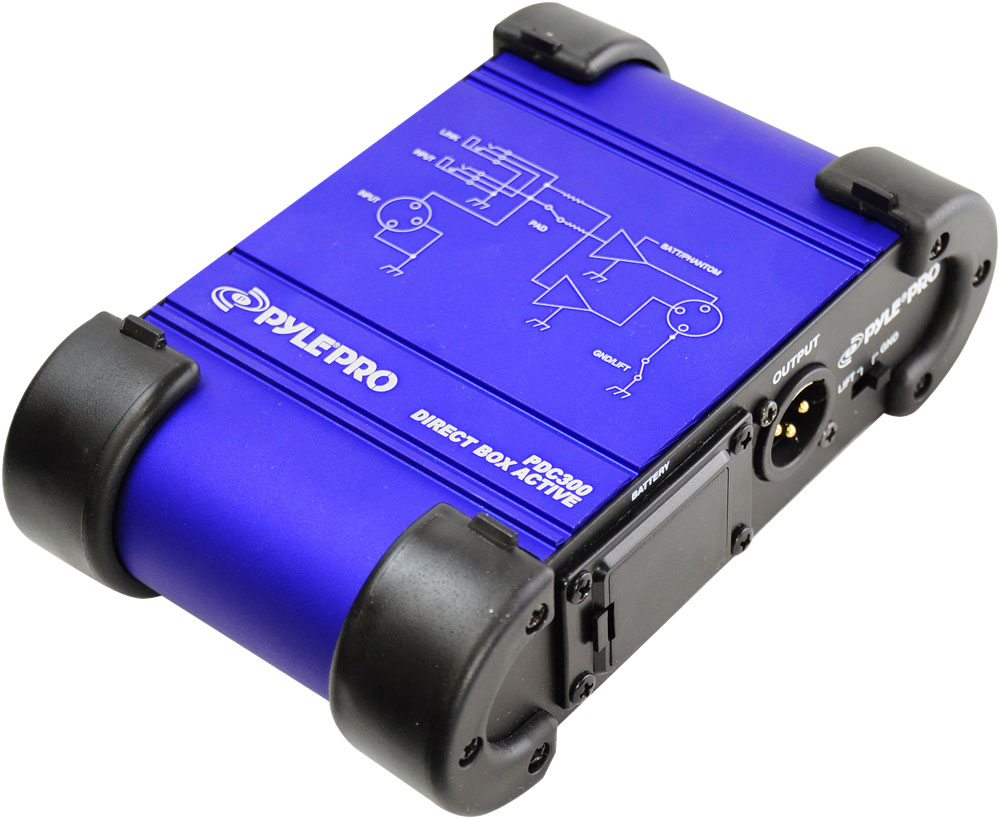

Exclusive Hot Active Direct Box - Unbalanced 1/4'' And XLR To Balanced XLR
Model PDC300
Brand Pyle
Category Cables - Wires - Adapters
MSRP $93.99
Warranty 1 year

Details


  • Rugged, Road-Proof Case
  • Ground Lift Switch Eliminates Typical Ground Loop Problems
  • Link Output Allows For Direct Connection
  • Internal Battery Automatically Shuts Down When Phantom Power Is Connected
  • Frequency Response: 20Hz - 20kHz
  • Noise Level (22Hz - 22khz, Input Shorted): -100dbu
  • THD+N (10Hz-22khz): 0.01%Typ.@1V RMS,1khz
  • Max. Input Level (1%THD): +6 dbu
  • Input: One 1/4'' Phone Jack, Unbalanced, One XLR Connector, Balanced Or Unbalanced
  • Output: One XLR Connector, Balanced
  • Link Output: One 1/4'' Phone Jack, Unbalanced
  • PAD Switch: 0db, -20db, -40db Setting
  • Ground Lift Switch
  • Battery: 9V
  • Dimensions: 6.22'' X 3.94'' X 1.97''
  • Weight: 0.88 lbs.
  • Sold as: Unit
  • Weight: 1.15 lbs.

    • Videos

    No Videos Available

    Manuals and Downloads

    No Manual And Download Available

    Reviews

      No User Review Available


    Sign in to Add Review



    Similar Products

    Product Description
    The PDC300 is an active direct box that allows you to convert your unbalanced, high-impedance line to a balanced, low-impedance line for longer cable runs and significant noise reduction. This active box is also specially designed to support a wide frequency spectrum, so you won't miss out on those low bass tones. It's powered by a 9V battery that automatically shuts down when phantom power is connected. Input: ¼' jack; output: XLR jack. Also includes a link output for a direct connection.
