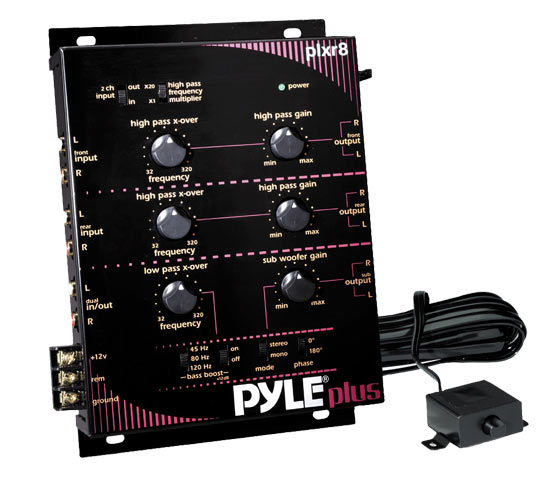

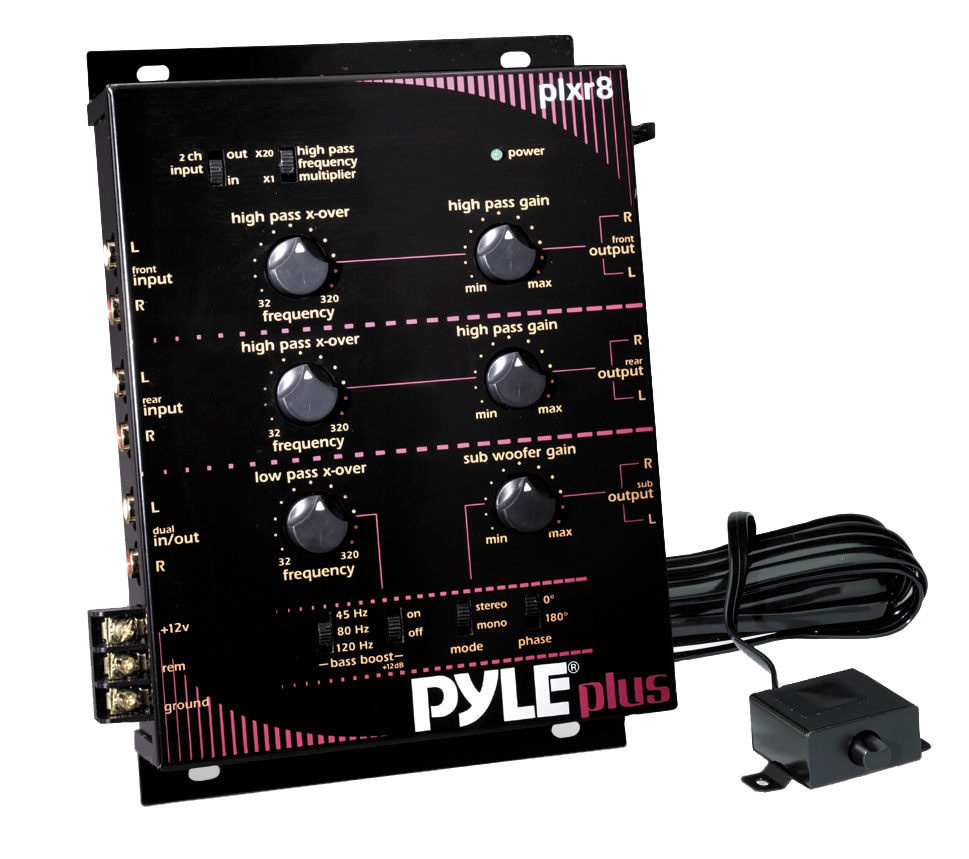

    Pyle - PLXR8 , On the Road , Equalizers - Crossovers , 3 Way Electronic Crossover w/Remote Subwoofer Control
3 Way Electronic Crossover w/Remote Subwoofer Control
Model PLXR8
Brand Pyle
Category Equalizers - Crossovers
MSRP $113.99
Warranty 1 year

Details


  • Hi-Pass Crossover: 32Hz-320Hz (Front and Rear)
  • X-20 Freq. Multiplier (Front)
  • Low Pass Crossover: 32Hz-320Hz (Subwoofer)
  • Variable Bass Freq.:32Hz-320Hz
  • Boost Level: 0 - 12dB
  • 18dB per Octave Crossover Slopes
  • Low Level RCA Inputs (Front, Rear, Dual)
  • RCA Line Outputs (Front, Rear, Sub)
  • Parallel Input Switch
  • Mixed In/Out Switch
  • 8 Channel Total Output
  • Individual Gain Controls
  • Remote Subwoofer Level Control (20 Feet)
  • Power On LED Indicator
  • Mounting Hardware Included
  • DC 12 Volt
  • Dimensions: 8.5''H x 5.9''W x 1.625''D
  • Sold as: Unit
  • Weight: 3.83 lbs.

    • Videos

    No Videos Available

    Manuals and Downloads

    PLXR8 - Manuals

    Reviews

      No User Review Available


    Sign in to Add Review



    Similar Products
    • main

    Product Description
    The Pyle Plus PLXR8 is what you need for quality audio separation - with 18 dB crossover slopes, this signal processor will have your music singing in no time. Comes with front, rear, and sub inputs and outputs. Another set of RCA jacks functions as another input or acts as another sub output. Gain up to 3 dB per channel. Bass boost smooths the subsonics in your signal for the best performance out of your speakers. Set the front & rear high-pass filters at a frequency between 32 and 320 Hz, or hit the x20 selector for 620 Hz and 6.4 kHz. Low pass works between 32 and 320 Hz - you select the frequency. Great for a bi- or tri-amped system. Requires 12 V.
