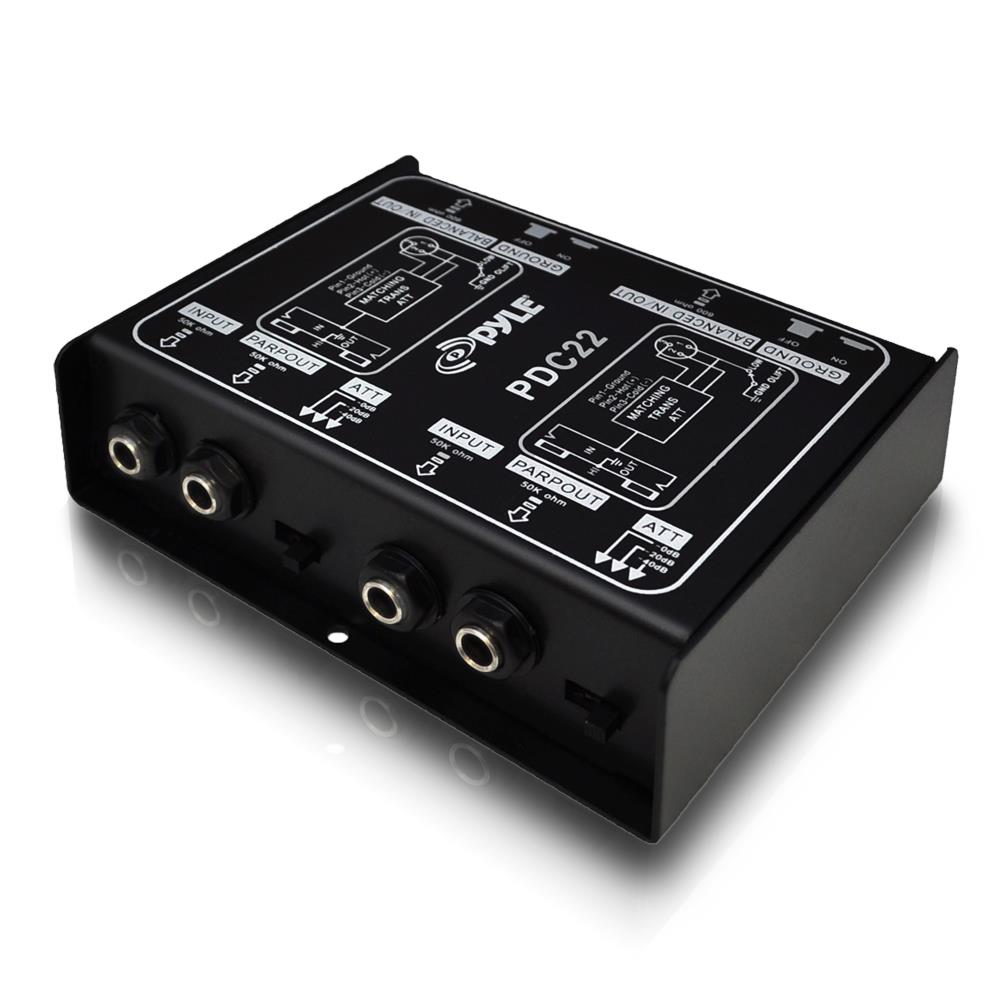

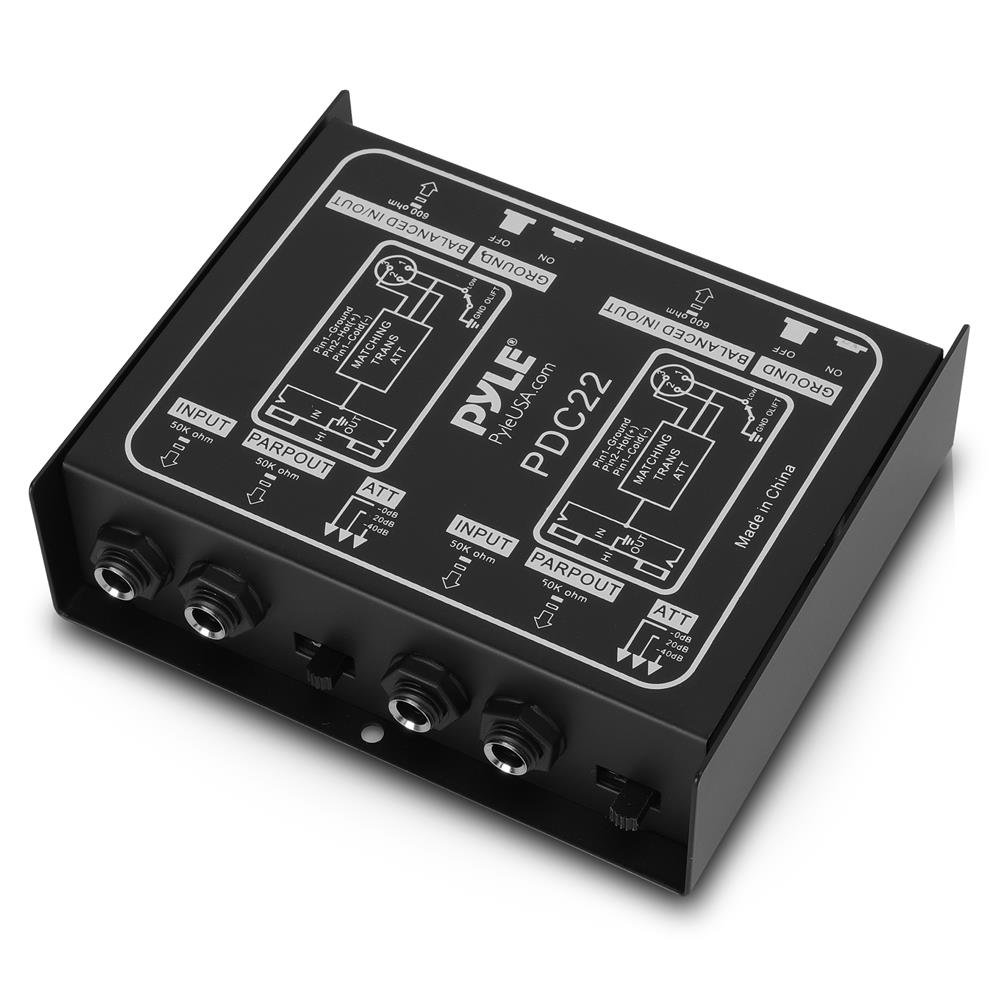

Professional High-Performance Dual Passive DI-Box - 1/4'' Instrument To Balanced & Unbalanced (1/4''/XLR) Direct Box
Model PDC22
Brand Pyle
Category Audio Processors - Sound Reinforcement
MSRP $46.99
Warranty 1 year

Details

  Features:
  • Two High-Quality Direct Boxes In One Convenient Enclosure
  • Enables to Tap Off the Signals from Amplifiers such as Guitar or Power Amplifier
  • Provides the Facility for the Direct Insertion of an Audio Signal into Mixer or Recorder
  • 1/4 Device Connector
  • Ultra-low Noise and Distortion
  • Connects All Kinds of Audio Signals like Guitars, Keyboards, etc.
  • Suitable for Outboard Signal Processors & High-Powered Speaker
  • Enables to Tap Off the Signals w/out Affecting the Original Sounds
  • Useful for Connecting Unbalanced Signals from Sources like Signals DJ and Sub Mixers
  • Provides a Clean Signal at a Low Level
  • Plug-in Guitar Directly into the PA System
  • Easy to Use Passive Electronic Device
  • Controls Hum and Buzz from Stage with the Ground Lift
  • Heavy Duty 14 Gauge Steel Construction
  • Bi-Directional Impedance Matching

    What’s In The Box:
  • Premium Direct Injection Audio Box

    Technical Specs:
  • Frequency Response: 5-35 KHz, -3dB
  • Noise Level: -104dBu
  • THD: 0.013%
  • Input Impedance: 50K Ohm
  • Max.Input Level: +8.1 dBu (9V Batt), +11.3 dBu (48V Phantom)
  • Instrument Input: 1/4'' Phone Jack, unbalanced
  • Parallel (link) Out: 1/4'' Phone Jack, unbalanced
  • Balanced Output: XLR Connector, balanced
  • Ground Lift: Switch-Able Ground Lift
  • Input Attenuation: Switch-Able (0db, -20db,-40db)
  • Construction Material: All Steel Chassis
  • Product Dimensions: 5.51'' x 4.72'' x 1.57'' -inches
  • Sold as: Unit
  • Weight: 1.26 lbs.
  • Videos

    No Videos Available

    Manuals and Downloads

    PDC22 - Manuals

    Reviews


      Average Rating :
      Its price is not indicative of its ...More
      needed a stereo direct box for a st...More
      It does the job. Very durable mater...More
      Works great at a great price for th...More
      These things are mechanically built...More
      Built well. I havent used at gig y...More



    Sign in to Add Review



    Similar Products

    Product Description
    Pyle PDC22 is a necessity if you are looking for the higest quality of sound, with low distortion, noise, and eliminate ground loops. A DI unit, DI box, Direct Box, Direct Input, Direct Injection or simply DI is an electronic device that connects a high impedance, line level, unbalanced output signal to a low impedance mic level balanced input, usually via XLR connector. DIs are frequently used to connect an electric guitar or electric bass to a mixing console's microphone input. The DI performs level matching, balancing, and either active buffering or passive impedance bridging to minimise noise, distortion, and ground loops. DIs do not perform impedance matching. Pyle has been in business for over 35 years, and their manufacturing experience and expertise is easy to see - and hear.
    Pyle - PDC22 , Sound and Recording , Audio Processors - Sound Reinforcement , Professional High-Performance Dual Passive DI-Box - 1/4 Pyle - PDC22 , Sound and Recording , Audio Processors - Sound Reinforcement , Professional High-Performance Dual Passive DI-Box - 1/4 Pyle - PDC22 , Sound and Recording , Audio Processors - Sound Reinforcement , Professional High-Performance Dual Passive DI-Box - 1/4 Pyle - PDC22 , Sound and Recording , Audio Processors - Sound Reinforcement , Professional High-Performance Dual Passive DI-Box - 1/4 Pyle - PDC22 , Sound and Recording , Audio Processors - Sound Reinforcement , Professional High-Performance Dual Passive DI-Box - 1/4 Pyle - PDC22 , Sound and Recording , Audio Processors - Sound Reinforcement , Professional High-Performance Dual Passive DI-Box - 1/4 Pyle - PDC22 , Sound and Recording , Audio Processors - Sound Reinforcement , Professional High-Performance Dual Passive DI-Box - 1/4
    Product Review
     Name : John 6/20/2015 9:06:30 AM
       Review : Its price is not indicative of its quality. It is not as expensive as others but it is just as reliable and very useful. We have been using these units and they have stood their test of time.

     Name : Peter 1/30/2015 1:26:46 PM
       Review : needed a stereo direct box for a stereo output on a keyboard. works great

     Name : Paola 1/26/2015 6:33:12 PM
       Review : It does the job. Very durable materials

     Name : Dan 12/12/2013 6:20:53 PM
       Review : Works great at a great price for the small scale sound reinforcement applications I use it for. I would recommend this product.

     Name : MIchael 3/31/2013 8:56:30 AM
       Review : These things are mechanically built like a tank. All solder connections are solid and doing an audio sweep of the units show frequency response reasonably close to what is published in the manual and well within the limits needed for commercial sound reinforcement. The only issue found was noisy attenuation switches. Of teh four (I have two units), one cleaned up after sliding it back and fourth a few times, and the other - if it were used at a concert - would send the system, house, and monitor engineers (and pretty much every one else in venue) running after you to clobber you because of the noise it caused. I will chalk it up to cheap switches and personally just bypassed the switches on the noisy unit via a soldered in jumper. (I only intend to use that unit for acoustic guitars so 0db padding is all I will ever use anyway.) Overall a great box, but had to give them only three stars due to the switch failures (one being catastrophic that would be a nightmare at a show and potentially damage house drivers if not properly limited).

     Name : Karl 8/24/2012 4:34:30 PM
       Review : Built well. I havent used at gig yet.
