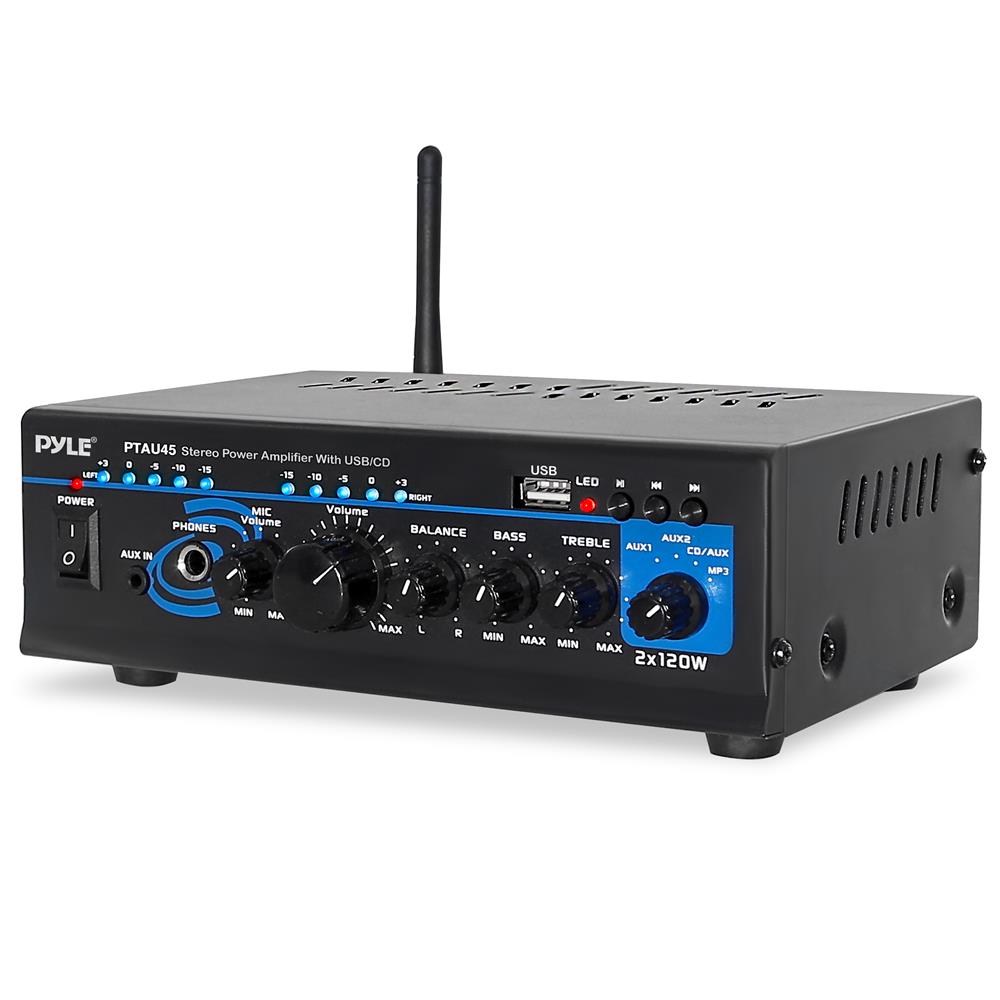

The Ultimate Stereo Power Amplifier
This amplifier gives you the power and versatility you need to create a professional sound system. Its wide frequency response makes it suitable for amplifying any type of audio including music or vocals. It can be used in meeting halls, restaurants, schools, stores, and at home --the perfect solution for paging systems anywhere. Get the power you need with 2 x 120 Watt to handle all your audio needs.
Switchable Mixing (Karaoke) Mode
When set to 'mixing' the signals from AUX1, AUX2, CD, & MIC will exist at the same time and works great for creating a karaoke event. Your music will play from your selected audio source and you will be able to sing through a connected microphone. (Microphone not included)
Switchable MIC Pager Mode
When set to 'pager' the signal from AUX1, AUX2, & CD will be attenuated by -12dB and the signal from MIC will override to page (Auto Talkover) and makes for an exceptional paging system.
USB 2.0 Input Interface with LED Indicator
You'll be in control with playback options when you insert a USB flash drive --or similar USB device. Play your favorite audio files from your computer's media library when you connect it directly into the amplifier.
.14-Inch AUX-In Jack
The .14-inch jack, located conveniently in the front, allows you to connect the input of many devices including iPods, MP3 players, smartphones, CD players etc.
Push Type Speaker Terminals
Lets you easily connect speaker wires directly to the amplifier. The speaker impedance can be ranged from four to eight Ohms for the general stereo output. The total speaker impedance must be at least four Ohms per channel at stereo mode.
110/220 Voltage Selector
This amplifier has selectable input voltage from 110 V/60 Hz (the standard in USA and Canada) to 220 V/50 Hz (for European operation). Please make sure the switch is in the proper position before operating.
.25-Inch Phone Jack
Accepts headphones with .25-inch plugs.
.25-Inch Microphone Input Jack
Accepts microphones with .25-inch plugs.
REC RCA Output
Lets you connect the amplifier to a tape deck for recording.
Take Control
Use the control center panel located on the face of the unit to make adjustments to microphone volume, master volume, balance, bass, and treble
Replaceable Power Fuse
The amplifier uses a fuse for protection against surges and short circuit. If the amplifier suddenly turns off and will not turn on, check the fuse, and replace it if necessary. (Replacement fuse to use: 1.5-amp, 250-volt, fast-acting .2 x .8 inches fuse -not included)
Additional Features
- Harmonic Distortion: 0.3%
- 2 x 120 Watt RMS at four Ohms
- Blue LED Output Level Display
- Frequency Response: 20 Hz-20 kHz
- Power Fuse: 1.5 A, 250 V Fast-Acting (.2 x .8 inches)
- Power Requirement: 120 V AC 60 Hz/230 V AC 50 Hz
- Tone Controls: Bass & Treble: +/-10 dB (100 Hz/10 kHz)
- Dimensions: 8.27 x 2.72 x 5.39 inches
