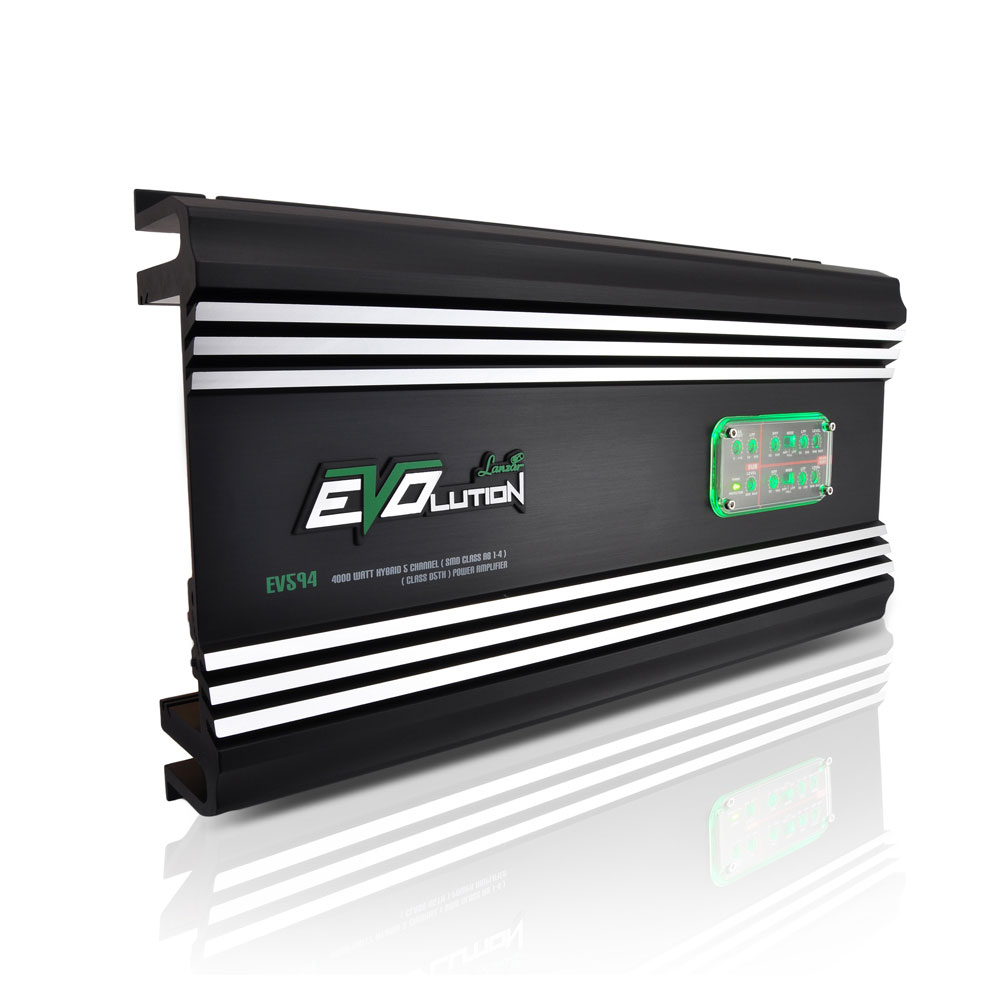

4,000 Watt Hybrid 5 Channel (SMD Class AB 1-4)(Class D 5th) Power Amplifier
|
|
|
|
|
|
|
Details
|
|
4 x 312 Watts/1 x 750 Watt RMS Power at 2 Ohms
4 x 625 Watts/1 x 1,500 Watt Peak Power at 2 Ohms
2 x 625 Watts RMS Power at 2 Ohm Bridged & 1,000 Watts x 1 RMS at 1 Ohm (Tri-Mode)
2 x 1,250 Watts Peak Power at 2 Ohm Bridged & 1,500 Watts x 1 Peak at 1 Ohm (Tri-Mode)
Variable Low Pass Filter : 50Hz - 500Hz/50Hz - 250Hz
Variable High Pass Filter(Subsonic@1CH) : 50Hz - 500Hz/15Hz - 45Hz
Input Sensitivity: Low: 200mV-6V ~ High: 400mV~12V
THD : <0.05%
S/N Ratio : >100dB
Channel Separation : >60dB
Frequency Response : 15Hz - 40KHz
Electronic Crossover Network
Bridgeable at 4 Ohms
4CH : 2 Ohm Stereo Stable, 1CH : 1 Ohm Stable
4CH : Tri-mode Capable
Double Side Epoxy PCB Circuit Board
Nickel Plated RCA Inputs
Low Pass Filter Controls
High Pass Filter Controls
Power & Protection LED Indicator
Thermal, Over load & Speaker Short Protection
Soft Turn-on/Turn-Off
Top Control PANNEL GREEN Illumination
Fuse Rating: 40A x 3
Dimensions: 8.97''(W) 2.41''(H) x 17.16''(L)Sold as: UnitWeight: 13.92 lbs.
|
