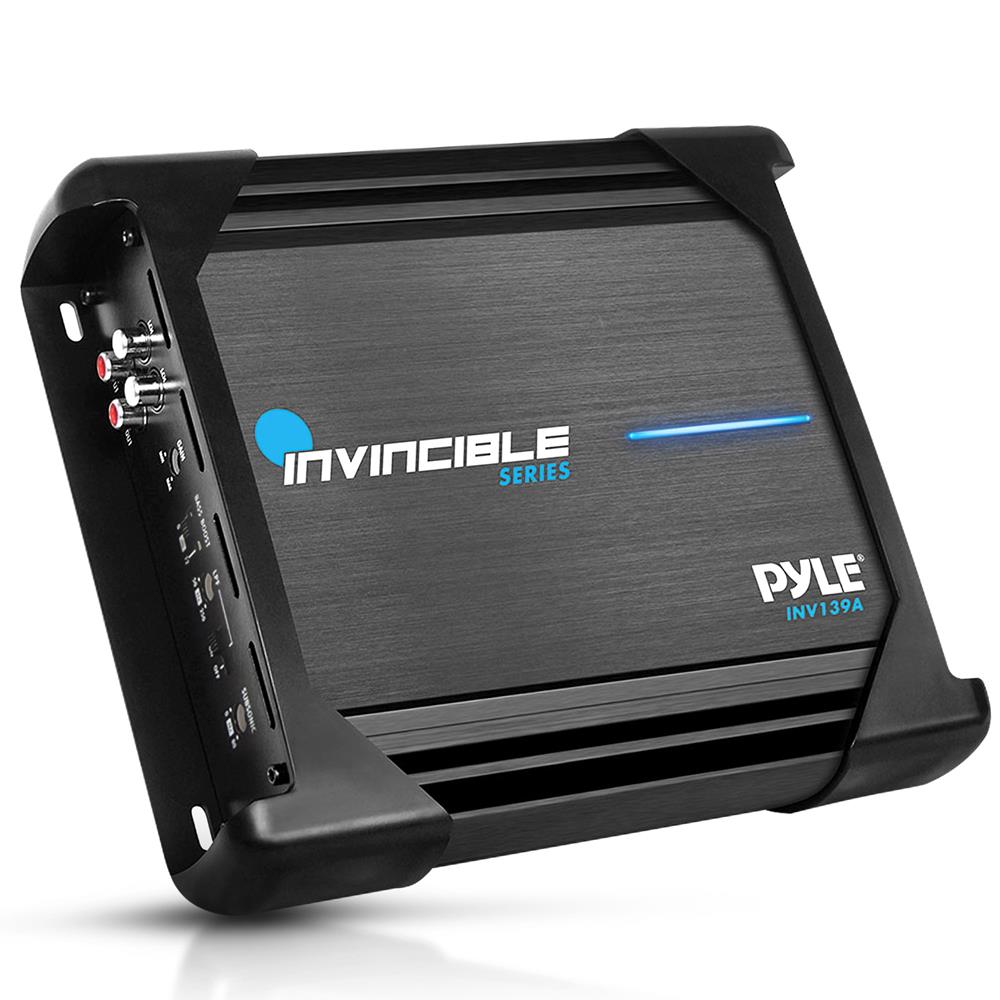

1 Channel 2000Watts Max Mosfet Amplifier, Invincible Series Amplifier
|
|
|
|
|
|
|
Details
|
|
Features:
Class “AB” High-Current Dual Discrete Drive Stages
Mosfet PWM Power Supply
Electronic Crossover Network
Low Pass Filter Controls
Bass Boost Circuitry
Subsonic Circuitry
PWM (Pulse-Width-Modulation) System
Custom Terminal Block for Speaker Connection
Thermal / Overload / Short Circuit Protection
Soft Turn On/ Off
Advanced Protection Circuitry
Chrome RCA Inputs, Power Speaker Terminals
Line Output (L/R) Channels
5 Way Protections
Power + Protection LED Indicators
What's in the Box:
Invincible Series Amplifier
High to Low Converter
(4) Tapping Screw 0.16 x 0.63’’ -inches
(4) Spacer Φ4.0
(1) Fuse-30A
Technical Specs:
1 x 350 Watt RMS @ 4 Ohm
1 x 650 Watt Peak @ 4 Ohm
1 x 900 Watt RMS @ 2 Ohm
1 x 2000 Watt Max @ 2 Ohm
Frequency Response 20 Hz-50kHz (±3dB)
Output Power @ 14.4v DC, 50Hz
Input Impedance: 20K Ohms
S/N Ratio: >90dB
T.H.D.: <0.01%
LPF Freq. Resp.: 50Hz - 250Hz
Subsonic Freq. Resp.: 0Hz~80Hz
Bass Boost(50Hz): 0,6,12dB
Input Sensitivity:0.2V~6V
Fuse: 30A x 1
Product Dimensions (L x W x H): 9.21'' x 8.13'' x 2.28'' -inchesSold as: 1Weight: 4.63 lbs.
|
