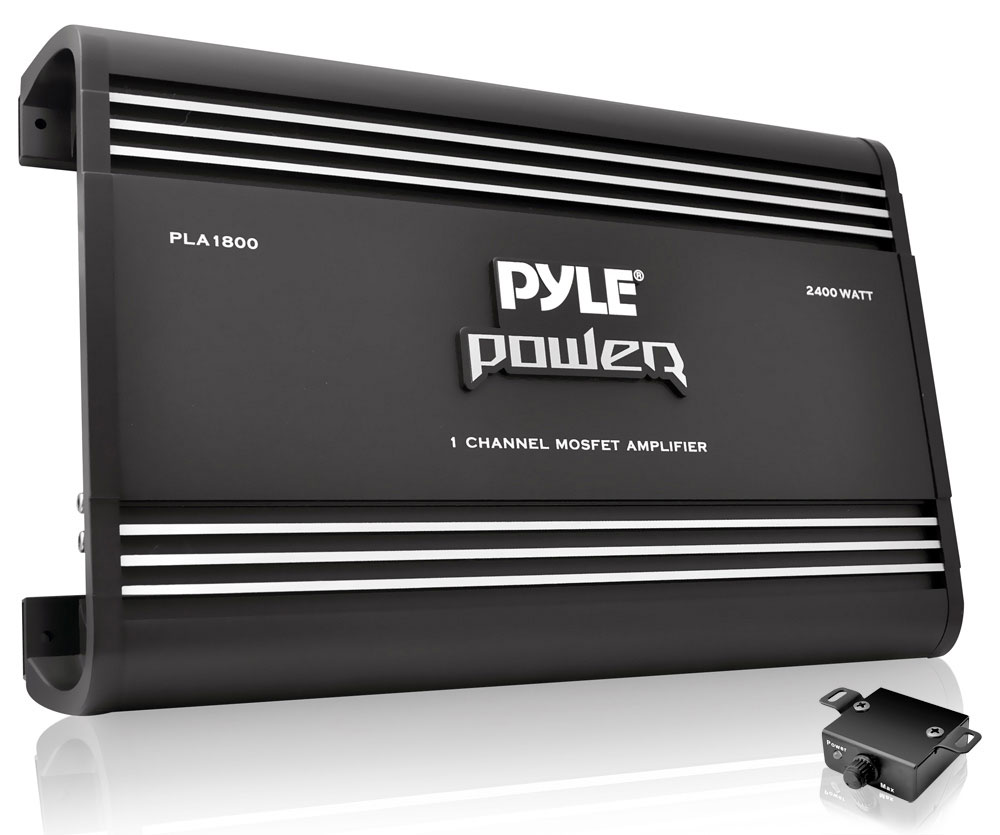

1 Channel 2400 Watts Bridgeable Mosfet Amplifier
Model PLA1800
Brand Pyle
Category Vehicle Amplifiers
MSRP $255.99
Warranty 1 year

Details


  • RMS Power @ 4 Ohms: 1 x 300W
  • RMS Power @ 2 Ohms: 1 x 500W
  • RMS Power @ 1.3 Ohms: 1 x 700W
  • Maximum Power Output 2400W Mono
  • Mono Block Sub woofer Amplifier
  • Frequency Response 10 Hz-300 Hz (±3dB)
  • Output Power @ 14.4v DC, 50Hz
  • 1 Ohm Stable
  • MOSFET Power Supply
  • PWM ( Pulse-Width-Modulation ) System
  • Glass Epoxy PCB
  • Silver RCA Inputs
  • Custom Terminal Block for Speaker Connection
  • Thermal / Overload / Short Circuit Protection
  • Variable Subsonic Filter ( 15Hz - 40Hz 24dB / Octave)
  • Remote Bass Boost
  • Input Impedance: 10K Ohms
  • Soft Turn On/ Off
  • Advanced Protection Circuitry
  • S/N Ratio: >90dB
  • Dimensions:10.24''W x 2.21''H x 16.14''L
  • Sold as: Unit
  • Weight: 11.26 lbs.
  • Videos

    No Videos Available

    Manuals and Downloads

    PLA1800 - Manuals

    Reviews


      Average Rating :
      love it like always!...More



    Sign in to Add Review



    Similar Products

    PLA1800
    Advanced Protection Circuitry view larger
    PLA1800
    Power Series Amplifiers view larger
    PLA1800
    System Application Diagram view larger
    PLA1800
    The Strong and not so Silent Type
    PLA1800
    Custom Terminal Block for Speaker Connections view larger
    PLA1800

    Power Amplifiers

    The Pyle Power Series Amplifiers will provide your audio setup with a powerful new sound. Add performance and quality enhancement to your music when you upgrade your audio system with these rugged and high-efficiency amps. Enjoy tomorrow’s advanced sound technology that outperforms all other amps in its class.

    This lineup of Pyle Power amps raises the bar when it comes to true sound quality. Get that sound you’ve been looking for with crisp music reproduction for any mobile audio environment.

    Sound Specialization

    These high-efficiency amplifiers host impressive power output wattage and are where form and function meet. Enjoy sound and performance enhancing features like Ohm specific stability, MOSFET power supply, PWM (Pulse-Width-Modulation) System, Glass Epoxy PCB, silver RCA inputs, custom terminal blocks for speaker connections, strong frequency response and input impedance rates along with plenty more features that make the Pyle Power Series Amplifiers stronger than the competition.

    Intelligent Design

    Safety features include power and protection LED indicator; soft turn-on/off, thermal, overload and speaker-short protection. LED Indicator shows when the amplifier is powered up normally and when your system is experiencing a protection fault.

    Pump it Up

    Take advantage of the Bass EQ Boost and turn it up. Make adjustments to the Bass EQ settings until you achieve that extra amount of kick you’ve been waiting for.

    Strong Sound – Powerful Style

    The jet-black design leaves a clean finish on the fortified aluminum heat-sink. The stream-lined and high-tech appearance will definitely add some muscle to your audio.

    Total Audio Control

    Once you’re connected, customize and adjust your listening experience to your liking with the amplifier’s control center. You can personalize and fine-tune settings like:

    • Level (Gain) Control – These are basically volume controls. This will allow you to adjust the incoming signal to the amplifier so that it works well with your headunit or to match the level of other amplifiers in your system.
    • Phase - Allows you to change the relative time that the waveform meets your ear. With standard subwoofer installations where the subwoofer is behind you, the phase should generally be at O. When subwoofers or woofers are in the kick panels or door panels, an adjustment is useful in delaying the timing of the wave meeting your ear.
    • High-Pass Filter – The High Pass crossover is used for sending midrange and high frequency information to a particular speaker. Activate the High Pass crossover if you intend to drive satellite or coaxial speakers in the system along with subwoofers driven by the amplifier’s channels. Even if your system does not include subwoofers, it may be helpful to activate the High Pass with smaller speakers to protect them from low frequency information to achieve better sound.
    • Low-Pass Filter - Filters high frequencies out of the music and improves efficiency and sound quality by allowing only the low frequencies to pass to the subwoofer. Sends only low frequency information to particular speakers. Low Pass crossover activation is usually desired if you intend to power subwoofers.
    • Bass EQ - Variable from a range of decibel adjustments, this feature regulates the impact of your bass kick. You’ll have manual control over balancing and correcting the frequency range of a given sound.
    • Crossover Switch – Basically acts as a filter and limits selected frequencies going to a subwoofer, which gradually reduce frequency signal strength. Routes output of the Low Pass or the output of the High Pass filters, or ‘Full’ to the power amplifier.

    *Please refer to table below for amplifier specific information and adjustment options.

    Speaker Output Connections

    Connect right and left speaker wire to corresponding speaker output terminals. Be sure to correctly connect the selected speaker wires to their respected speaker terminal, this includes both positive and negative wiring. Improper installation/wiring will result in the speaker cones to move out of phase which can cause bass cancellation.

    Input Connections

    These amplifiers have inputs for Low Level input connections. The Low Level signal is carried through RCA connection cables.

    Accessories Included

    Comes with mounting hardware, Bass Boost Control Module and module connection cable.

    Additional Features

    • RMS Power @ 4 Ohms: 1 x 300W
    • RMS Power @ 2 Ohms: 1 x 500W
    • RMS Power @ 1.3 Ohms: 1 x 700W
    • Maximum Power Output 2400W Mono
    • Mono Block Subwoofer Amplifier
    • Frequency Response 10 Hz-300 Hz (±3dB)
    • Output Power @ 14.4v DC, 50Hz
    • 1 Ohm Stable
    • MOSFET Power Supply
    • PWM ( Pulse-Width-Modulation ) System
    • Glass Epoxy PCB
    • Silver RCA Inputs
    • Custom Terminal Block for Speaker Connection
    • Thermal / Overload / Short Circuit Protection
    • Variable Subsonic Filter ( 15Hz - 40Hz 24dB / Octave)
    • Remote Bass Boost
    • Input Impedance: 10K Ohms
    • Soft Turn On/ Off
    • Advanced Protection Circuitry
    • S/N Ratio: >90dB
    • Dimensions: 10.24''W x 2.21''H x 16.14''L

    Which Pyle Power Series Amplifier is Right For You?

    PLA2378

    PLA2678

    PLA2978

    PLA4278

    PLA4478

    PLA1800
      Currently Viewing
    PLA3100D

    PLA4600D

    Channels 2 2 2 4 4 1 1 1
    Watt Power Output @ 4 Ohms 2 x 1000 2 x 2000 2 x 2500 4 x 500 4 x 100 1 x 300 1 x 900 1 x 1200
    Watt Power Output @ 2 Ohms - - - - - 1 x 500 1 x 1200 1 x 1800
    Watt Power Output @ 1 Ohms - - - - - 1 x 700 1 x 1600 1 x 2400
    Bridged @ 4 Ohms 1 x 2000 1 x 4000 1 x 5000 2 x 1000 2 x 2000 - - -
    Maximum Output Watt Power 2000 4000 5000 2000 4000 2400 3100 4600
    Low Pass Cross Frequency 40Hz – 300Hz 40Hz – 300Hz 40Hz – 300Hz 60Hz – 200Hz 60Hz – 200Hz 40Hz – 300Hz 40Hz – 150Hz 40Hz – 150Hz
    High Pass Cross Frequency 40Hz – 300Hz 40Hz – 300Hz 40Hz – 300Hz 15Hz – 250Hz 15Hz – 250Hz - - -
    Subsonic Filter - - - - - 10Hz – 40 Hz 15Hz – 55Hz 15Hz – 55Hz
    Fuse Size 2 x 15A 2 x 40A 4 x 30A 2 x 25A 2 x 40A 2 x 30A 4 x 25A 4 x 30A



    open click how married men cheat
    aids cure the symptoms of hiv hiv symptoms
    types of women who cheat I cheated on my girlfriend why married men cheat on their wives
    chlamydia trachomatis symptoms signs of chlamydia in the mouth treatments of chlamydia
    affair dating sites my boyfriend cheated on me with my mom i cheated on husband
    i almost cheated on my boyfriend link i think my boyfriend cheated on me
    letter to husband who cheated men who have affairs men having affairs
    kerala sex stories blog.icuracao.net interactive adult stories
    types of abortions myjustliving.com how is an abortion done
    looking to cheat mdfoosball.com online affair
    how much is abortion read abortion pros and cons
    Product Description
    When power isn't enough, you need Pyle Power. This one channel, 2400-watt power supply is bridgeable. It's equipped with everything you've come to expect from quality car amplifiers. The RCA ports are silver-plated for eliminating signal loss. A subsonic filter allows low-end interference to be cut, so your speakers will always be delivered the highest quality audio. The MOSFET pulse width modulation power supply allows for a clean, distortion-free signal to your speakers. To keep both your car and the amplifier safe, this model is equipped with thermal, overload, and short circuit protection. So when what you need is power, trust Pyle Power.
    Pyle - PLA1800 , On the Road , Vehicle Amplifiers , 1 Channel 2400 Watts Bridgeable Mosfet Amplifier Pyle - PLA1800 , On the Road , Vehicle Amplifiers , 1 Channel 2400 Watts Bridgeable Mosfet Amplifier Pyle - PLA1800 , On the Road , Vehicle Amplifiers , 1 Channel 2400 Watts Bridgeable Mosfet Amplifier Pyle - PLA1800 , On the Road , Vehicle Amplifiers , 1 Channel 2400 Watts Bridgeable Mosfet Amplifier Pyle - PLA1800 , On the Road , Vehicle Amplifiers , 1 Channel 2400 Watts Bridgeable Mosfet Amplifier
    Product Review
     Name : brett 8/1/2012 5:07:41 PM
       Review : love it like always!
