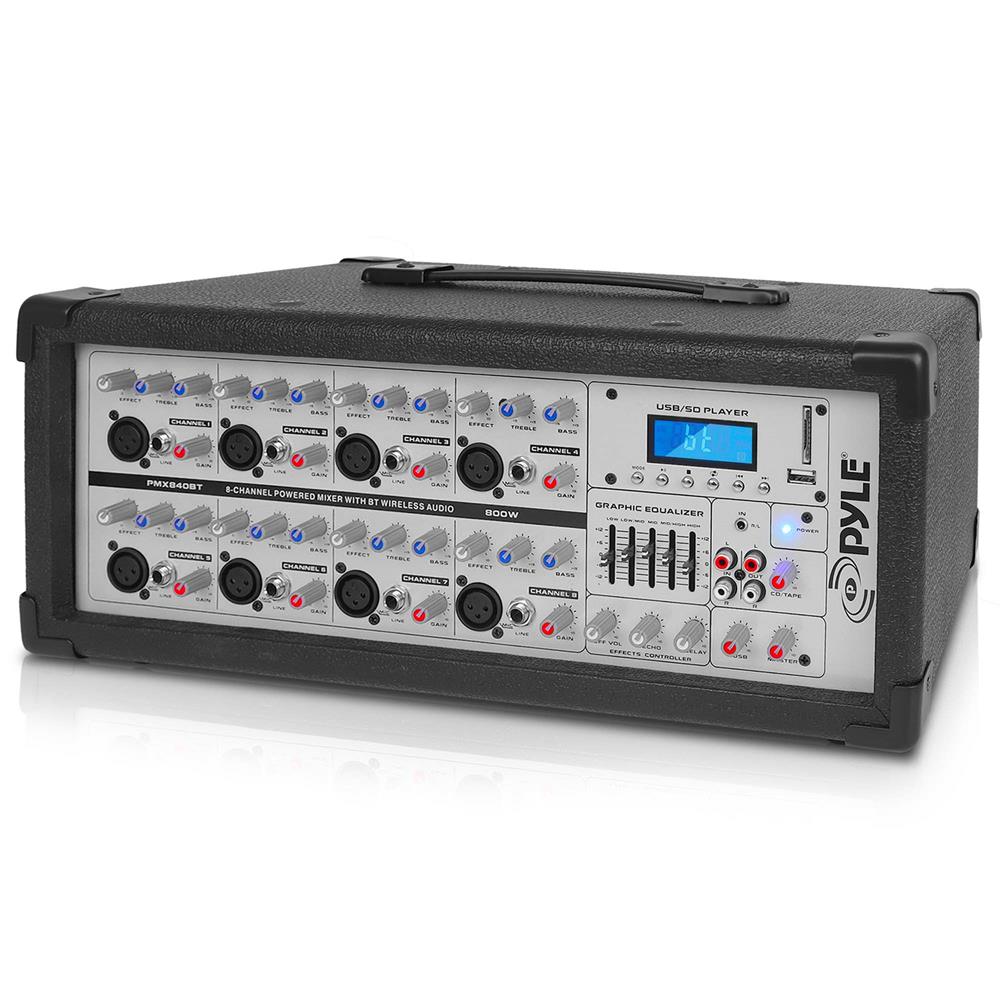

8-Channel Bluetooth Stage Powered Mixer - Pro Audio Sound Mixer, MP3/USB/SD Readers, Aux(3.5mm) Input, Digital LCD Display (800 Watt)
|
|
|
|
|
|
|
Details
|
|
Features:
8-Ch. Audio Mixer System
Pro Audio Stage Powered Design
Bluetooth Wireless Music Streaming
Digital LCD Display
Front Panel Audio Control Center
Connect & Stream Audio from External Devices
MP3 Digital Audio File Support
USB Flash Drive & SD Memory Card Readers
Aux (3.5mm) Input Jack
3-Pin Low Impedance Balanced Microphone Inputs
1/4'' Line/ High Impedance Balanced Inputs
Headphone Output: 1/4'' TRS Stereo Connector
RCA & 1/4'' Effects Loop Connectors
Additional RCA Inputs: Tape Play (L/R), Tape Record (L/R)
Master 5 Band Graphic Equalizer
Independent Channel Volume, EQ & EFFX Adjustment
EQ & Master EFFX Control of Level, Echo & Reverb Controls
Convenient Carry Handle
Built-in Cooling Fan
Bluetooth Connectivity:
Built-in Bluetooth for Wireless Music Streaming
Simple & Hassle-Free Pairing
Works with All of Today's Latest Devices
(Smartphones, Tablets, Laptops, Computers, etc.)
Bluetooth Wireless Network Name: ‘AC46XX’
Bluetooth Version: 2.1+EDR
Wireless Range: 30’+ ft.
What's in the Box:
8-Ch. Bluetooth Stage Powered Mixer
Power Cable
Technical Specs:
Power Output: 800 Watt MAX
8 Ohm Impedance Each Channel
Line Level Impedance 10K Ohms @ -10dBv
Mono Microphone Inputs (XENYX Mic Pre-Amp)
XLR: Electronically Balanced Discrete Input Circuit
Frequency Response: <10Hz–150kHz (-1dB), <10Hz–200kHz (-3dB)
Gain Range: +10 - +60dB
Max. Input Level: +12dBu @ +10dB Gain
Impedance: Approx. 2.6k Ω Balanced
Signal-to-Noise Ratio: 110dB / 112dB, A–Weighted
Distortion: (THD+N): 0.005% / 0.004%, A-Weighted
Channel Equalization: Control Range
High @ 10K +/-15dB, Low @ 60K +/-15dB
Master EQ Frequency Hz: 60, 250, 1K, 4K, 12K
Boost/Cut Control: +/-12dB
Effects Loop & Send: 1/4'' TS Connectors Unbalanced
Impedance: Approx 1k Ohm -10dBvSold as: UnitWeight: 21.8 lbs.
|
|
|
|
|
|
|
|
|
|
|
Similar Products
|
|
|
|
|
|
|
|
|
|
|
|
The Pyle PMX840BT is your powered PA mixer and amplifier solution. This 800 watt, 8-channel sound system comes with built-in Bluetooth technology so you can quickly and easily stream wireless audio. Enjoy compact and convenient mutli-source audio control at your next event with this versatile system. Connect it all; features include 3-Pin Low Impedance Balanced Microphone Inputs, 1/4” Line/ High Impedance Balanced Inputs, audio line (3.5mm) input for connecting Smartphones or MP3 players, along with plenty more features to keep all of your audio in order. Configure and fine-tune your sound settings and achieve the precise audio levels you’ve been looking for. Take control of the sound, and the crowd, with the Pyle 8-Channel Bluetooth PA and Microphone Audio Mixer System.
|
