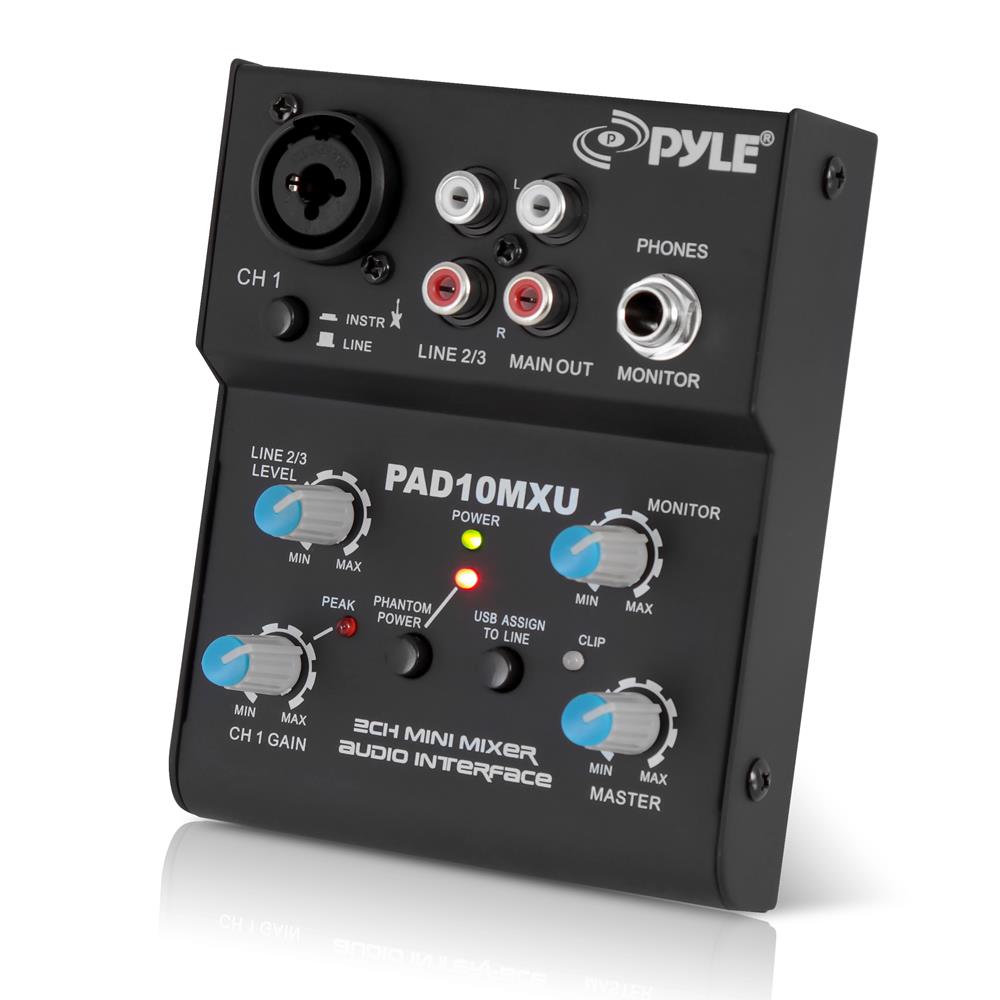

Features:
Combo Input Connector Female/XLR, 1/4'' Phone Jack For MIC/Line Inputs
Line 3/2 Stereo Line Inputs RCA Plugs,To Connect Cd, Mp3 Tape Deck, Players
Main Out RCA Plugs To Connect The Mixer, Receiver Or Amplifier
Signal Output Thru The Headphones
Line/INSTR SW Input Select Switch Set
Line 2/3 Level This Control Adjusts The Volume Of Signal Input Of Line 2/3
Peak Led It Lights Up Went The Input Signal Of Ch1 Is Too High
Ch 1 Gain This Control Adjust The Volume Of Signal Input Of Ch1
USB Audio Interface
Master Lets You Control Mixer’s Overall Volume Level
Clip Led Lights Up Went The Main Output Signal Is Too High
Monitor To Control Volume Output Of The Monitor Jack
Power Led Indicates That The Unit Is In On Position
Technical Specs:
Phantom Power: 18V
Phantom Power Supply On The XLR Connector Of Ch1
Dimensions: 4.7'' x 3.8'' x 1.3'' -inchesSold as: UnitWeight: 1.58 lbs.
|
